Linear Ball Bearing LMK35UU
2026-01-13

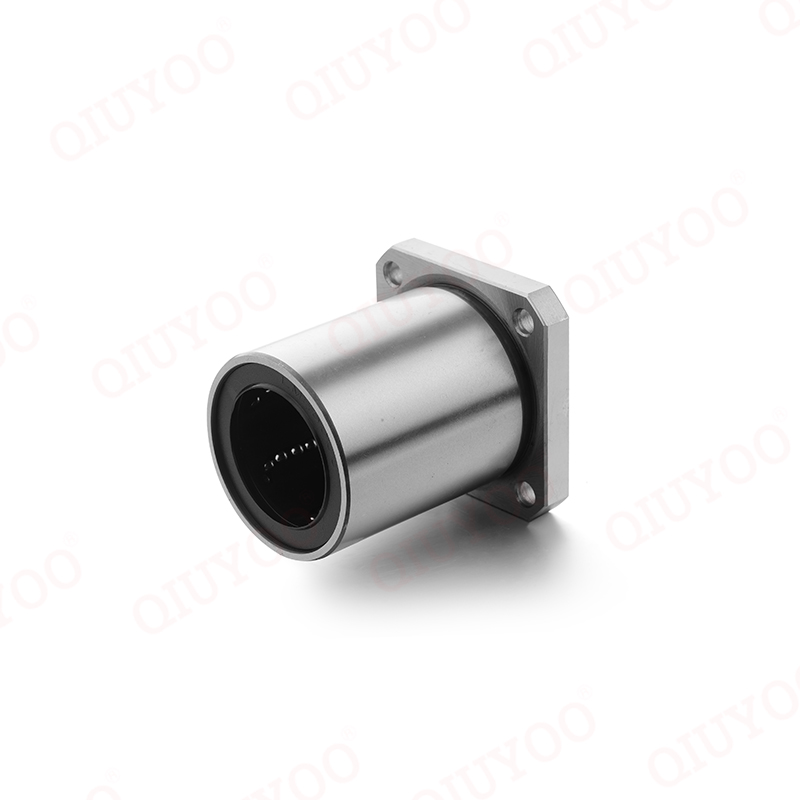

LMK35UU Flanged Linear Ball Bearing
Additional Information

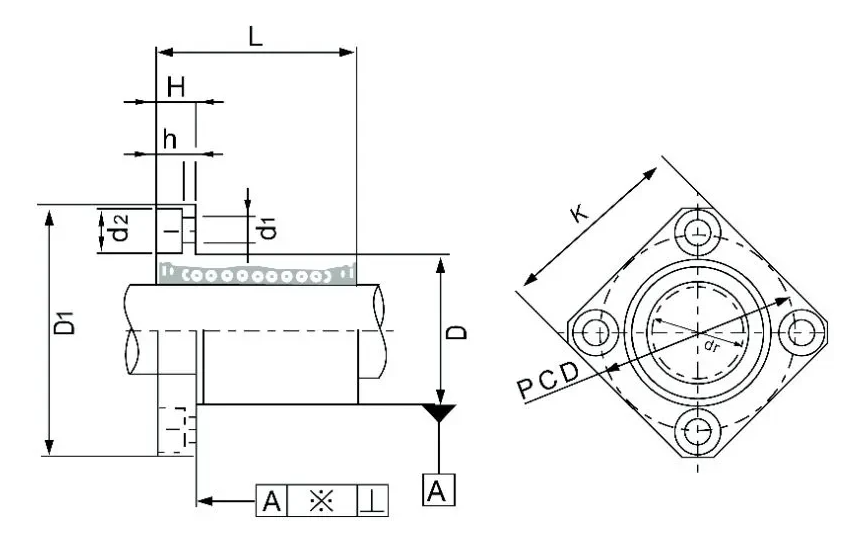

| Weight [kg] | 0.6500 |
|---|---|
| Shaft diameter dr [mm] | 35 |
| D [mm] | 52 |
| L [mm] | 70 |
| H [mm] | 10 |
| D1 [mm] | 82 |
| K [mm] | 64 |
| PCD [mm] | 67 |
| C [N] | 1670 |
| d1x d2xh [mm] | 6.6x11x6.1 |
| Co [N] | 3140 |
Features
- With a variety of design and ease of installation
- Used in case of passing a load of moving body directly to the Linear Bushing
- Installed without housing
- Can be selected resin retainer (standard), and steel retainer (for high temperature & vacuum)
- Corrosion-resisting: the nickel-plated, Raydent treatment of Outer-sleeves, stainless steel ball
