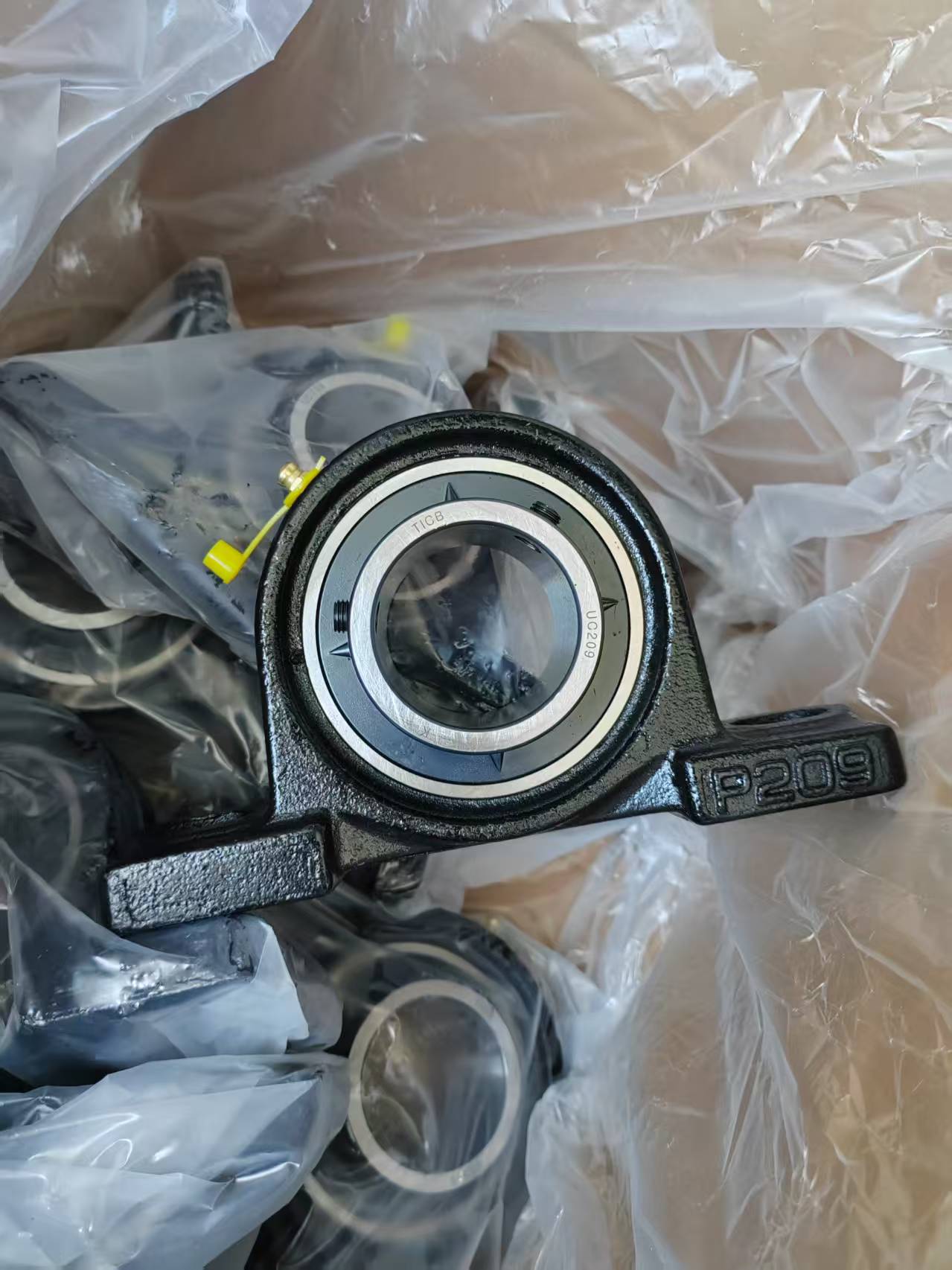

Pillow Block Bearing UCP209
2025-10-16
Standard Duty Pillow Block Housed Bearing Unit Parameter
P seat material: cast steel, cast iron

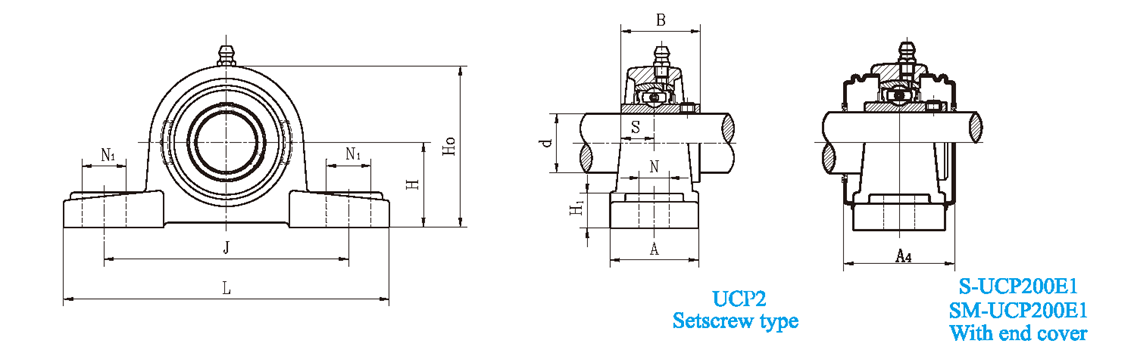

Bearing Dimension(s):
Shaft Size (d) = 45mm
Overall Housing Length (L) = 190mm
Bolt Hole Centre Distance (J) = 146mm
Base to Bearing Centre Height (H) = 54mm
Overall Housing Width (A) = 54mm
Overall Housing Height (Ho) = 106mm
Bolt Hole Width (N) = 17mm
Bolt Hole Length (N1) = 21mm
Base Depth (H1) = 20mm
Width Through Bore (B) = 49.2mm
Ball Centre to Bearing Back-Face (S) = 19mm
Bolt Used: M14
Load Rating(s):
Basic Dynamic Load Rating = 31.7kN
Basic Static Load Rating = 20.69kN
Speed Limitation(s):
Permissible Speed of Rotation (Grease Lubrication) = 1900 r/min
Operating Temperature Range: -10°C to +100°C
