H2300 Adapter Sleeves

QY032

They can be used on both plain and stepped shafts, adapter sleeves are the most widely used parts for locating bearings with a tapered bore onto a cylindrical seat.
They don't need to be placed anywhere else on the shaft and are simple to install. The bearing can be positioned anywhere on a plain shaft when using it. when combined with an L-shaped spacer ring and used on stepped shafts.Accurate axial positioning of the bearing makes installation and unmounting the bearing easier.

Quantity:

Contact Now

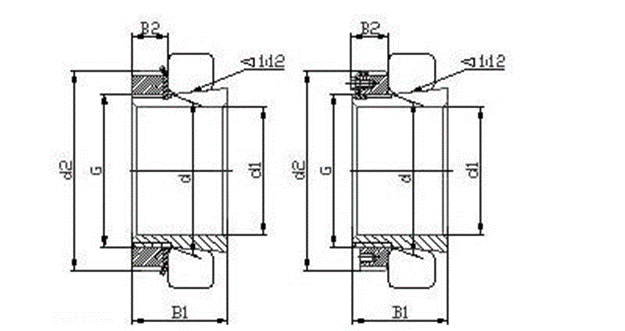

Adapter Sleeve	Shaft d1				Dimensions(mm)					Weight	Composition
	H	HE	HS	HA	d	d2	B1	B2	G	(kg)	Sleeve	Lock nut	Lock washer	Lock card
	mm	in	in	in	d	d2	B1	B2	G		Sleeve	Lock nut	Lock washer	Lock card
H2304	17				20	32	31	7	M20×1	0.049	A2304	KM04	MB04
H2305	20	3/4	7/8	13/16	25	38	35	8	M25×1.5	0.087	A2305	KM05	MB05
H2306	25	1	7/8	15/16	30	45	38	8	M30×1.5	0.126	A2306	KM06	MB06
H2307	30	1-1/4	1-1/8	1-3/16	35	52	43	9	M35×1.5	0.17	A2307	KM07	MB07
H2308	35	1-1/4	1-3/8	1-5/16	40	58	46	10	M40×1.5	0.224	A2308	KM08	MB08
H2309	40	1-1/2	1-5/8	1-7/16	45	65	50	11	M45×1.5	0.28	A2309	KM09	MB09
H2310	45	1-5/8	1-11/16	1-3/4	50	70	55	12	M50×1.5	0.362	A2310	KM10	MB10
H2311	50	2	1-7/8	1-15/16	55	75	59	12	M55×2	0.42	A2311	KM11	MB11
H2312	55	2-1/4	2-1/8	2-1/16	60	80	62	13	M60×2	481	A2312	KM12	MB12
H2313	60	2-1/4	2-3/8	2-3/16	65	85	65	14	M65×2	0.557	A2313	KM13	MB13
H2314	60				70	92	68	14	M70×2	0.9	A2314	KM14	MB14
H2315	65	2-1/2	2-5/8	2-7/16	75	98	73	15	M75×2	1.05	A2315	KM15	MB15
H2316	70	2-3/4	2-7/8	2-11/16	80	105	78	17	M80×2	1.28	A2316	KM16	MB16
H2317	75	3		2-15/16	85	110	82	18	M85×2	1.45	A2317	KM17	MB17
H2318	80	3-1/4	3-1/8	3-3/16	90	120	86	18	M90×2	1.69	A2318	KM18	MB18
H2319	85	3-1/4		3-5/16	95	125	90	19	M95×2	1.92	A2319	KM19	MB19
H2320	90	3-1/2		3-7/16	100	130	97	20	M100×2	2.15	A2320	KM20	MB20
H2321	95				105	140	101	20	M105×2	2.46	A2321	KM21	MB21
H2322	100	4		3-15/16	110	145	105	21	M110×2	2.75	A2322	KM22	MB22
H2324	110	4-184		4-3/16	120	155	112	22	M120×2	3.2	A2324	KM24	MB24
H2326	115	4-1/2		4-7/16	130	165	121	23	M130×2	4.6	A2326	KM26	MB26
H2328	125	5	4-13/16	4-15/16	140	180	131	24	M140×2	5.55	A2328	KM28	MB28
H2330	135	5-1/4		5-3/16	150	195	139	26	M150×2	6.63	A2330	KM30	MB30
H2332	140	5-1/2		5-7/16	160	210	147	28	M160×3	9.15	A2332	KM32	MB32
H2334	150	6		5-15/16	170	220	154	29	M170×3	10.2	A2334	KM34	MB34
H2336	160	6-1/2		6-7/16	180	230	161	30	M180×3	11.3	A2336	KM36	MB36
H2338	170	6-3/4		6-15/16	190	240	169	31	M190×3	12.6	A2338	KM38	MB38
H2340	180	7		7-3/16	200	250	176	32	M200×3	14	A2340	KM40	MB40
H2344	200				220	280	186	44	T220×4	16.7	A2344	HM44		MS44
H2348	220				240	300	199	46	T240×4	29.7	A2348	HM48		MS48
H2352	240				260	330	211	49	T260×4	24.2	A2352	HM52		MS52
H2356	260				280	350	224	51	T280×4	27.8	A2356	HM56		MS56
