Rigid Coupling

QY925

Rigid coupling is a type of torsion-resistant coupling. Even when subjected to loads, it has no rotational clearance. Even if there is a deviation causing load, the rigid coupling still rigidly transmits torque. It is generally classified into fastening bolt type, clamping type and separation type.

Let's take the rigid coupling with bolt fastening property that can replace the RULAND brand as an example. The materials can be carbon steel, stainless steel or aluminum alloy. Key slots can be made according to the requirements.

For more information, please contact us.

Quantity:

Contact Now

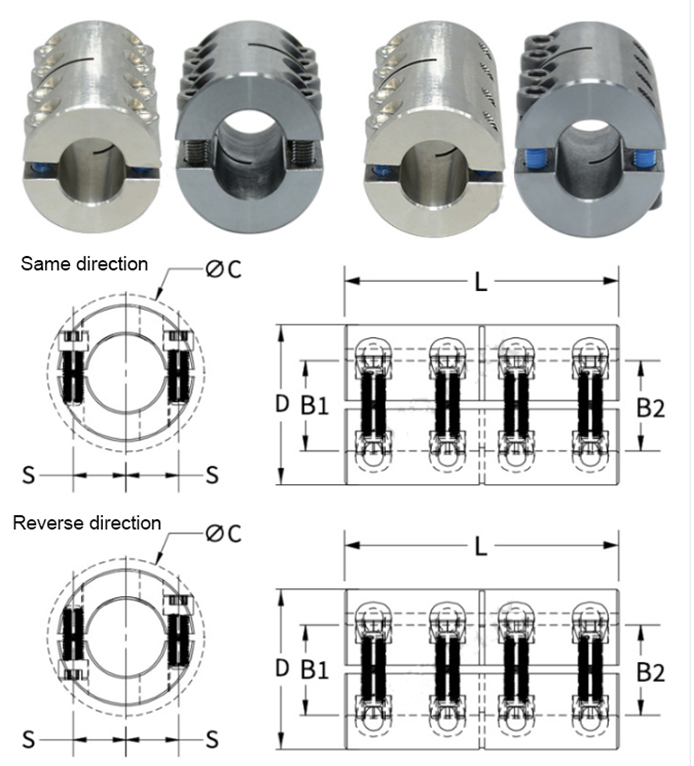

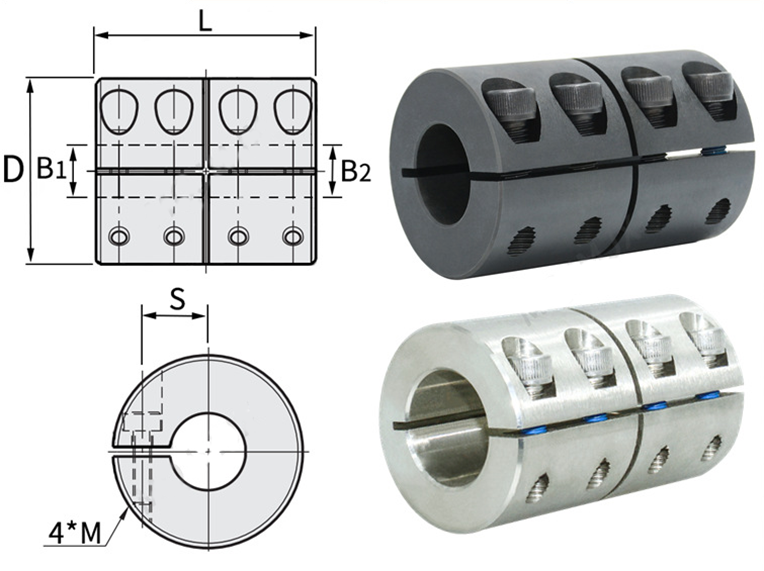

Type	RULAND Type				DIMENSION(mm)
	One-piece		Two-piece		Shaft		Outer diameter D	Length L	Screw LOC S	Clearance DIAM. C Max	Screw
	Black oxide steel	Stainless steel	Black oxide steel	Stainless steel	B1	B2	Outer diameter D	Length L	Screw LOC S	Clearance DIAM. C Max	Screw
3-15-22	MCLX-3-3-F	MCLX-3-3-SS	MSPX-3-3-F	MSPX-3-3-SS	3	3	15	22	4.6	15.0	M2
4-15-22	MCLX-4-4-F	MCLX-4-4-SS	MSPX-4-4-F	MSPX-4-4-SS	4	4	15	22	4.6	15.0	M2
5-15-22	MCLX-5-5-F	MCLX-5-5-SS	MSPX-5-5-F	MSPX-5-5-SS	5	5	15	22	4.6	15.0	M2
6-18-30	MCLX-6-6-F	MCLX-6-6-SS	MSPX-6-6-F	MSPX-6-6-SS	6	6	18	30	5.9	21.5	M3
8-24-35	MCLX-8-8-F	MCLX-8-8-SS	MSPX-8-8-F	MSPX-8-8-SS	8	8	24	35	9.0	27.1	M3
10-29-45	MCLX-10-10-F	MCLX-10-10-SS	MSPX-10-10-F	MSPX-10-10-SS	10	10	29	45	10.6	33.0	M4
12-29-45	MCLX-12-12-F	MCLX-12-12-SS	MSPX-12-12-F	MSPX-12-12-SS	12	12	29	45	10.6	33.0	M4
14-34-50	MCLX-14-14-F	MCLX-14-14-SS	MSPX-14-14-F	MSPX-14-14-SS	14	14	34	50	12.0	39.4	M5
15-34-50	MCLX-15-15-F	MCLX-15-15-SS	MSPX-15-15-F	MSPX-15-15-SS	15	15	34	50	12.0	39.4	M5
16-34-50	MCLX-16-16-F	MCLX-16-16-SS	MSPX-16-16-F	MSPX-16-16-SS	16	16	34	50	12.0	39.4	M5
20-42-65	MCLX-20-20-F	MCLX-20-20-SS	MSPX-20-20-F	MSPX-20-20-SS	20	20	42	65	15.4	48.9	M6
25-45-75	MCLX-25-25-F	MCLX-25-25-SS	MSPX-25-25-F	MSPX-25-25-SS	25	25	45	75	16.9	51.5	M6
30-53-83	MCLX-30-30-F	MCLX-30-30-SS	MSPX-30-30-F	MSPX-30-30-SS	30	30	53	83	20.9	58.7	M6
35-67-95	MCLX-35-35-F	MCLX-35-35-SS	MSPX-35-35-F	MSPX-35-35-SS	35	35	67	95	26.7	74.7	M8
40-77-108	MCLX-40-40-F	MCLX-40-40-SS	MSPX-40-40-F	MSPX-40-40-SS	40	40	77	108	31.8	84.0	M8
50-85-124	MCLX-50-50-F	MCLX-50-50-SS	MSPX-50-50-F	MSPX-50-50-SS	50	50	85	124	34.1	94.2	M10
