SAF Plummer Block

QY020

The SAF split-type bearing housing is made of materials such as cast iron, cast steel and stainless steel.

For more model specifications, please contact us.

Quantity:

Contact Now

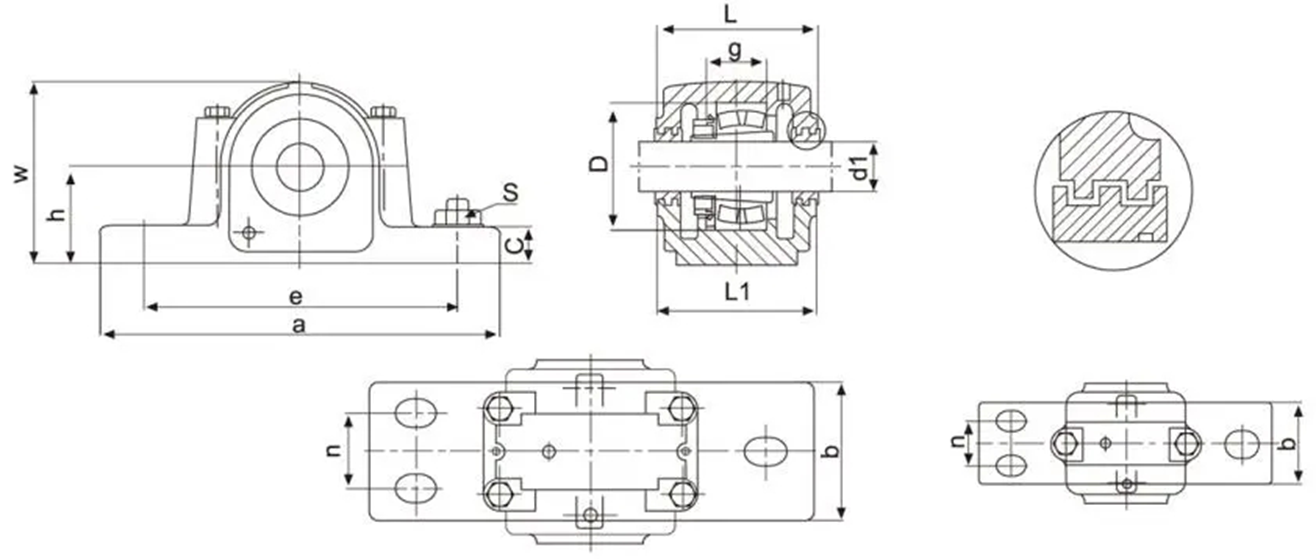

Housing No.	Shaft dia.	Dimensions (mm)														Housing Weight (kg)	Bearing No.	Adapter Sleeve	Locating Ring
		D	g	h	W	L	L1	a	b	C	e	e	n	S					Locating Ring
		H8	H12	H12	W	L	L1	a	b	C	max	min	n	(2)	(4)				Number	QTY
SAF505	45720	52	25	38.1	75	70	73	165	45	18	139.7	118		M12		1.8	1205K	HA205	FR52x5	2
SAF505	45720	52	25	38.1	75	70	73	165	45	18	139.7	118		M12		1.8	2205K	HA305	FR52x7	1
SAF506	15/16	62	30	44.5	86	78	83	191	51	18	155	133		M12		2.2	1206K	HA206	FR62X7	2
SAF506	15/16	62	30	44.5	86	78	83	191	51	18	155	133		M12		2.2	2206K	HA306	FR62x10	1
SAF507	36966	72	33	50.8	97	81	83	191	51	21	156	143		M12		2.7	1207K	HA207	FR72x8	2
SAF507	36966	72	33	50.8	97	81	83	191	51	21	156	143		M12		2.7	2207K	HA307	FR72x10	1
SAF509	37088	85	31	57.2	111	87	92	210	61	21	178	159		M12		3.9	1209K	HA209	FR85x6	2
SAF509	37088	85	31	57.2	111	87	92	210	61	21	178	159		M12		3.9	2209K	HA309	FR85x8	1
SAF509	37088	85	31	57.2	111	87	92	210	61	21	178	159		M12		3.9	22209K	HA309	FR85x8	1
SAF510	37211	90	33	63.5	121	87	99	210	61	24	178	165		M12		4.3	1210K	HA210	FR90X6.5	2
SAF510	37211	90	33	63.5	121	87	99	210	61	24	178	165		M12		4.3	2210K	HA310	FR90X10	1
SAF510	37211	90	33	63.5	121	87	99	210	61	24	178	165		M12		4.3	22210K	HA310	FR90x10	1
SAF511	1-15/16	100	33	69.9	133	95	114	245	70	24	200	188		M16		5	1211K	HA210	FR100x6	2
SAF511	1-15/16	100	33	69.9	133	95	114	245	70	24	200	188		M16		5	2211K	HA310	FR100x8	1
SAF511	1-15/16	100	33	69.9	133	95	114	245	70	24	200	188		M16		5	22211K	HA311	FR100x8	1
SAF513	37331	120	41	76.2	151	108	114	279	80	25	241	206	50.8	M16	M12	7.7	1213K	HA213	FR120x9	2
SAF513	37331	120	41	76.2	151	108	114	279	80	25	241	206	50.8	M16	M12	7.7	2213K	HA313	FR120x10	1
SAF513	37331	120	41	76.2	151	108	114	279	80	25	241	206	50.8	M16	M12	7.7	22213K	HA313	FR120x10	1
FSAF513	37331	120	41	76.2	151	108	114	279	80	25	241	206	50.8	M16	M12	7.7	1213K	HA213	FR120x9	2
FSAF513	37331	120	41	76.2	151	108	114	279	80	25	241	206	50.8	M16	M12	7.7	2213K	HA313	FR120x10	1
FSAF513	37331	120	41	76.2	151	108	114	279	80	25	241	206	50.8	M16	M12	7.7	22213K	HA313	FR120x10	1
SAF515	37453	130	41	82.6	162	118	121	286	80	29	245	219	47.7	M16	M12	8.7	1215K	HA215	FR130X8	2
SAF515	37453	130	41	82.6	162	118	121	286	80	29	245	219	47.7	M16	M12	8.7	2215K	HA315	FR130x10	1
SAF515	37453	130	41	82.6	162	118	121	286	80	29	245	219	47.7	M16	M12	8.7	22215K	HA315	FR130x10	1
FSAF515	37453	130	41	82.6	162	118	121	286	80	29	245	219	47.7	M16	M12	8.7	1215K	HA215	FR130X8	2
FSAF515	37453	130	41	82.6	162	118	121	286	80	29	245	219	47.7	M16	M12	8.7	2215K	HA315	FR130x10	1
FSAF515	37453	130	41	82.6	162	118	121	286	80	29	245	219	47.7	M16	M12	8.7	22215K	HA315	FR130x10	1
SAF516	37576	140	43	88.9	175	121	124	330	89	30	279	245	54.1	M20	M16	11.6	1216K	HA216	FR140X8.5	2
SAF516	37576	140	43	88.9	175	121	124	330	89	30	279	245	54.1	M20	M16	11.6	2216K	HA316	FR140x10	1
SAF516	37576	140	43	88.9	175	121	124	330	89	30	279	245	54.1	M20	M16	11.6	22216K	HA316	FR140x10	1
FSAF516	37576	140	43	88.9	175	121	124	330	89	30	279	245	54.1	M20	M16	11.6	1216K	HA216	FR140X8.5	2
FSAF516	37576	140	43	88.9	175	121	124	330	89	30	279	245	54.1	M20	M16	11.6	2216K	HA316	FR140x10	1
FSAF516	37576	140	43	88.9	175	121	124	330	89	30	279	245	54.1	M20	M16	11.6	22216K	HA316	FR140x10	1
SAF517	2-15/16	150	46	95.3	186	122	127	330	89	32	279	251	54.1	M20	M16	12.3	1217K	HA217	FR150x9	2
SAF517	2-15/16	150	46	95.3	186	122	127	330	89	32	279	251	54.1	M20	M16	12.3	2217K	HA317	FR150x10	1
SAF517	2-15/16	150	46	95.3	186	122	127	330	89	32	279	251	54.1	M20	M16	12.3	22217K	HA317	FR150x10	1
FSAF517	2-15/16	150	46	95.3	186	122	127	330	89	32	279	251	54.1	M20	M16	12.3	1217K	HA217	FR150x9	2
FSAF517	2-15/16	150	46	95.3	186	122	127	330	89	32	279	251	54.1	M20	M16	12.3	2217K	HA317	FR150x10	1
FSAF517	2-15/16	150	46	95.3	186	122	127	330	89	32	279	251	54.1	M20	M16	12.3	22217K	HA317	FR150x10	1
SAF518	37696	160	50	101.6	197	140	146	349	99	33	295	264	54.1	M20	M16	15.4	1218K	HA218	FR160X10	2
SAF518	37696	160	50	101.6	197	140	146	349	99	33	295	264	54.1	M20	M16	15.4	2218K	HA318	FR160x10	1
SAF518	37696	160	50	101.6	197	140	146	349	99	33	295	264	54.1	M20	M16	15.4	22218K	HA318	FR160X10	1
FSAF518	37696	160	50	101.6	197	140	146	349	99	33	295	264	54.1	M20	M16	15.4	1218K	HA218	FR160X10	2
FSAF518	37696	160	50	101.6	197	140	146	349	99	33	295	264	54.1	M20	M16	15.4	2218K	HA318	FR160x10	1
FSAF518	37696	160	50	101.6	197	140	146	349	99	33	295	264	54.1	M20	M16	15.4	22218K	HA318	FR160X10	1
SAF520	37818	180	58	114.3	222	148	152	387	111	45	333	295	60.5	M24	M20	27.3	1220K	HA220	FR180x11	2
SAF520	37818	180	58	114.3	222	148	152	387	111	45	333	295	60.5	M24	M20	27.3	2220K	HA320	FR180x10	1
SAF520	37818	180	58	114.3	222	148	152	387	111	45	333	295	60.5	M24	M20	27.3	22220K	HA320	FR180x10	1
FSAF520	37818	180	58	114.3	222	148	152	387	111	45	333	295	60.5	M24	M20	27.3	1220K	HA220	FR180x11	2
FSAF520	37818	180	58	114.3	222	148	152	387	111	45	333	295	60.5	M24	M20	27.3	2220K	HA320	FR180x10	1
FSAF520	37818	180	58	114.3	222	148	152	387	111	45	333	295	60.5	M24	M20	27.3	22220K	HA320	FR180x10	1
SAF522	3-15/16	200	63	125.4	245	164	165	419	121	51	368	321	69.9		M20	35	1222K	HA222	FR200X12.5	2
SAF522	3-15/16	200	63	125.4	245	164	165	419	121	51	368	321	69.9		M20	35	2222K	HA322	FR200x10	1
SAF522	3-15/16	200	63	125.4	245	164	165	419	121	51	368	321	69.9		M20	35	22222K	HA322	FR200x10	1
SAF524	38062	215	68	133.4	260	181	188	419	121	54	368	337	69.9		M20	43.2	22224K	HA3124	FR215x10	1
SAF526	38184	230	74	152.4	292	197	203	467	130	61	406	372	82.6		M24	58.6	22226K	HA3126	FR230x10	1
SAF528	4-15/16	250	78	152 4	298	187	194	511	149	61	435	406	85.9		M24	62	22228K	HA3128	FR250X10	1
SAF530	38427	270	83	160 4	318	207	213	540	159	64	464	432	95.3		M24	76.8	22230K	HA3130	FR270x10	1
SAF532	38549	290	90	169 9	338	216	222	559	159	67	489	442	95.3		M24	81.3	22232K	HA3132	FR290x10	1
SAF534	5-15/16	310	96	179 4	360	235	245	629	172	70	549	492	108		M24	104.5	22234K	HA3134	FR310X10	1
SAF536	38914	320	96	190 5	378	245	254	680	181	76	600	530	117.6		M24	117.6	22236K	HA3136	FR320x10	1
SAF538	6-15/16	340	102	200	398	267	273	711	191	80	619	549	114.3		M30	135	22238K	HA3138	FR340x10	1
SAF540	39157	360	108	209.6	419	279	286	749	203	86	635	572	127		M30	167.5	22240K	HA3140	FR360x10	1
SAF544	7-15/16	400	118	241.3	473	298	305	832	222	95	708	629	133.4		M30	230.2	_22244K	HA3144	FR400X10	1
