Rolos de agulha radial e conjuntos de gaiolas

QY008

Os conjuntos de rolos de agulha e gaiola, além dos conjuntos de rolos de agulha completos, o rolo de agulha e o conjunto da gaiola são o design mais simples do rolamento de rolos de agulha. Os conjuntos de rolos de agulha e gaiola são de design de linha única ou dupla e compreendem um rolos de gaiola e agulha. Os conjuntos de rolos de agulha e gaiolas radiais podem suportar cargas radiais altas e permitir altas velocidades. Eles combinam as vantagens da capacidade de transporte de carga de acordos de rolamento de agulha completos com as vantagens de velocidade de um rolamento de gaiola e são fáceis de montar. Para modelos específicos, consulte -nos.

Quantidade:

send contact

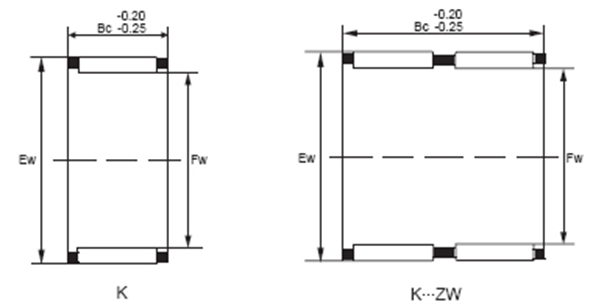

Diâmetro do eixo	Número do rolamento	Peso	Dimensões de limite			Classificação básica de carga		Velocidade limitadora
Diâmetro do eixo	Número do rolamento	Peso	Fw	Ew	Bc	Cr	Cor	Óleo
mm		g	mm			N		RPM
3	K3x5x7 tn	0,3	3	5	7	1540	1290	50000
	K3X5X9 TN	0,4	3	5	9	1710	1480	50000
	K3x6x7 tn	0,4	3	6	7	1430	970	47000
4	K4x7x7 tn	0,5	4	7	7	2330	1840	43000
4	K4X7X10 TN	0,7	4	7	10	2350	1920	39000
5	K5X8X8 TN	0,7	5	8	8	2300	1880	37000
5	K5X8X10 TN	0,9	5	8	10	2800	2450	37000
6	K6X9X8 TN	0,8	6	9	8	2560	2240	35000
	K6X9X10 TN	1	6	9	10	3300	3100	35000
	K6X10X13 TN	1.3	6	10	13	3500	2800	33000
7	K7X10X8 TN	0,9	7	10	8	2750	2550	32000
7	K7X10X10 TN	1.1	7	10	10	3350	3400	32000
8	K8X11X8 TN	1.1	8	11	8	3000	2900	30000
	K8X11X10 TN	1.7	8	11	10	3830	3950	30000
	K8X11X13 TN	1.8	8	11	13	5000	5700	30000
	K8X12X10 TN	1.3	8	12	10	4900	4600	30000
9	K9X12X10 TN	1.5	9	12	10	4200	4700	30000
9	K9X12X13 TN	1.9	9	12	13	5500	6700	30000
10	K10X13X10 TN	1.6	10	13	10	4500	5250	27000
	K10X13X13 TN	2.1	10	13	13	6000	7600	27000
	K10X13X16 TN	2.2	10	13	16	6300	7800	27000
	K10X14X10 TN	2.9	10	14	10	7000	7900	27000
	K10X14X13 TN	4.3	10	14	13	8000	9100	26000
	K10X16X12 TN	3.7	10	16	12	7000	9300	27000
12	K12X15X9 TN	2.7	12	15	9	4120	5210	25000
	K12X15X10 TN	1.9	12	15	10	4320	5730	25000
	K12X15X13 TN	2.4	12	15	13	6000	8100	25000
	K12X15X20 TN	3.8	12	15	20	8200	12000	25000
	K12X16X8 TN	2.9	12	16	8	4200	4700	25000
	K12X16X10 TN	3.4	12	16	10	6000	6900	25000
	K12x16x13 tn	3.8	12	16	13	7900	9200	25000
	K12x17x13 tn	4.4	12	17	13	9300	10000	24000
	K12X18X12 TN	5	12	18	12	9800	8000	24000
14	K14X17X10	4	14	17	10	5100	6800	23000
	K14X17X17	6.8	14	17	17	9300	14000	23000
	K14X18X10	4.8	14	18	10	6800	8300	23000
	K14X18X13	6.3	14	18	13	8100	9800	23000
	K14X18X14	6.8	14	18	14	9200	12000	23000
	K14X18X15	7.3	14	18	15	10000	13000	23000
	K14X18X17	8.1	14	18	17	10500	13900	23000
	K14X20X12	8.6	14	20	12	9900	10500	22000
15	K15X18X14	5.3	15	18	14	7500	11000	23000
	K15X18X17	6.4	15	18	17	9600	15900	23000
	K15X19X10	5.1	15	19	10	7200	9000	22000
	K15X19X13	7	15	19	13	8300	9800	22000
	K15X19X17	8.8	15	19	17	10300	15000	22000
	K15X19X24 ZW	10.5	15	19	24	12800	20100	22000
	K15X20X13	8.9	15	20	13	9700	11000	22000
	K15x21x12	10	15	21	12	10000	13000	22000
	K15X21X15	13	15	21	15	13800	16000	22000
	K15x21x21	18.2	15	21	21	18000	24000	22000
16	K16X20X10	5.7	16	20	10	7600	9700	22000
	K16X20X13	7.1	16	20	13	8700	11300	22000
	K16X20X17	9.2	16	20	17	11200	16300	22000
	K16X21X10	3.7	16	21	10	9000	12000	22000
	K16X22X12	10.4	16	22	12	11000	12000	21000
	K16X22X13	11.9	16	22	13	12000	13400	21000
	K16X22X16	13.7	16	22	16	14300	17000	21000
	K16X22X20	16.7	16	22	20	18000	22300	21000
	K16X23X14	20	16	23	14	19000	21000	19000
	K16X24X20	24.9	16	24	20	21100	23000	20000
17	K17X21X10	5.6	17	21	10	7900	10100	21000
	K17X21X13	7.5	17	21	13	10000	14100	21000
	K17x21x17	9.5	17	21	17	12000	17400	21000
	K17X23X14	11.5	17	23	14	11000	15000	21000
18	K18X22X10	6.1	18	22	10	8200	9900	20000
	K18X22X13	7.7	18	22	13	9000	12100	20000
	K18X22X17	10.8	18	22	17	11900	17600	20000
	K18X24X12	11.6	18	24	12	11200	12900	20000
	K18X24X13	12.6	18	24	13	12900	14900	20000
	K18X24X13.5	13	18	24	13.5	12900	14900	20000
	K18X24X20	19	18	24	20	20000	26500	20000
	K18X25X14	14.9	18	25	14	16500	18800	20000
	K18X25X22	24.9	18	25	22	22900	28400	20000
	K18X26X14	19	18	26	14	18000	20000	18000
	K18X28X16	24	18	28	16	19000	18400	19000
19	K19X23X13	8.2	19	23	13	9300	13000	20000
19	K19X23X17	11.1	19	23	17	12000	18600	20000
20	K20X24X10	6.5	20	24	10	8700	12100	19000
	K20X24X12	8	20	24	12	9600	13800	19000
	K20X24X13	8.9	20	24	13	9600	13800	19000
	K20X24X17	11.2	20	24	17	12400	20000	19000
	K20X26X12	13.2	20	26	12	13100	15700	19000
	K20X26X16	17.5	20	26	16	18000	25000	18500
	K20X26X17	18.2	20	26	17	18700	25500	19000
	K20X26X20	22	20	26	20	20600	28500	19000
	K20X28X20	26.8	20	28	20	23400	28000	18000
	K20X28X25	32	20	28	25	30000	28500	18000
	K20X30X30	56	20	30	30	35000	41000	18000
21	K21X25X13	9	21	25	13	9600	14500	19000
21	K21X25X17	12	21	25	17	12800	21000	19000
22	K22X26X10	7.1	22	26	10	8700	12900	18000
	K22X26X13	9.4	22	26	13	10000	15400	18000
	K22x26x17	12.1	22	26	17	13100	22100	18000
	K22X27X13	10.8	22	27	13	14000	23000	18000
	K22X28X17	19.7	22	28	17	19000	26500	18000
	K22X28X23	26	22	28	23	20000	27000	19000
	K22X29X16	22.2	22	29	16	19500	25000	17000
	K22x30x15 tn	14.4	22	30	15	19600	22900	17000
	K22X30X20	28	22	30	20	21000	23500	18900
	K22X32X24	43.4	22	32	24	33500	39500	16000
23	K23x35x16 tn	30	23	35	16	24000	23400	15000
24	K24X28X10	8.1	24	28	10	9400	14300	17000
	K24X28X13	10.1	24	28	13	10500	17000	17000
	K24X28X17	13.2	24	28	17	14000	24500	17000
	K24X29X13	13.5	24	29	13	13100	19100	16000
	K24X30X17	21.5	24	30	17	19000	27000	16000
	K24X30X31	39.1	24	30	31	27000	43000	16000
25	K25X29X10	8.3	25	29	10	9700	14900	16000
	K25X29X13	10.4	25	29	13	10800	17900	16000
	K25X29X17	13.7	25	29	17	14500	25500	16000
	K25X30X13	12.9	25	30	13	14100	21300	16000
	K25X30X20	20.5	25	30	20	21100	28000	16000
	K25X30X25	21	25	30	25	21700	40400	15000
	K25X30X26	21.6	25	30	26	20100	26500	15000
	K25X31X17	21.8	25	31	17	19000	28000	16000
	K25X31X21	26.2	25	31	21	24100	37500	16000
	K25X32X16	24.5	25	32	16	20500	27500	15000
	K25X33X20	32	25	33	20	28000	37500	15000
	K25X33X24	38.7	25	33	24	33900	46500	15000
	K25X34X18	32	25	34	18	48000	67000	15000
	K25X35X30	65.5	25	35	30	46500	61500	14000
	K25X30X26 ZW	27	25	30	26	21000	35000	14000
26	K26X30X10	9	26	30	10	9500	15500	16000
	K26X30X13	11.4	26	30	13	11100	18700	16000
	K26X30X17	15	26	30	17	14700	27000	16000
	K26X30X22	9.9	26	30	22	12400	18400	15000
	K26X31X13	12.3	26	31	13	15200	28000	16000
27	K27X32X17	29	27	32	17	16000	34000	17000
28	K28X32X16.5	16	28	32	16.5	15000	32400	14000
	K28X32X17	18.2	28	32	17	15000	32400	14000
	K28X33X13	15.2	28	33	13	14800	23600	14000
	K28X33X17	19.5	28	33	17	19100	33000	14000
	K28x33x27 tn	19	28	33	27	22800	40500	14000
	K28X34X17	24.2	28	34	17	21300	35000	14000
	K28X35X16	26	28	35	16	21000	29000	14000
	K28X35X18	31	28	35	18	23500	33500	14000
	K28X35X20	35	28	35	20	24000	34000	14000
	K28X35X27	47	28	35	27	34500	54500	14000
	K28X36X16	40	28	36	16	34000	47000	11000
	K28X40X18	50	28	40	18	33000	36500	12000
	K28X40X25	71	28	40	25	45000	54500	12000
30	K30X34X13	14.6	30	34	13	11800	21200	13000
	K30X35X13	16.3	30	35	13	15100	25000	13000
	K30X35X17	21.3	30	35	17	19100	33500	13000
	K30X35X27	33.3	30	35	27	30000	58500	13000
	K30X37X16	26.4	30	37	16	22500	33000	13000
	K30X38X25	43	30	38	25	16000	39000	13000
	K30X40X18	44	30	40	18	31500	39500	12000
	K30X40X30	78	30	40	30	48500	68500	13000
	K30X35X26	32	30	35	26	23500	43500	12000
32	K32x37x13	18.3	32	37	13	15000	25000	12000
	K32X37X17	22.4	32	37	17	19400	35000	12000
	K32X37X27	36.7	32	37	27	29500	59500	12000
	K32x37x28 tn	22.3	32	37	28	23100	43000	12000
	K32X38X16	25	32	38	16	21000	34000	12000
	K32X38X20	31	32	38	20	26000	44500	12000
	K32X38X26 TN	25.2	32	38	26	27000	46500	12000
	K32X39X16	36.7	32	39	16	23500	35000	12000
	K32x39x18	37.2	32	39	18	26000	40500	12000
	K32X40X20	48	32	40	20	37000	40500	12000
	K32X40X36	73	32	40	36	53500	91500	12000
	K32X46X32	119	32	46	32	65500	82500	11000
	K32x40x42 tn	77.1	32	40	42	49500	83500	12000
35	K35X40X13	18.8	35	40	13	15800	27500	11000
	K35X40X17	25.3	35	40	17	20300	38000	11000
	K35X40X25	31	35	40	25	29000	59500	11000
	K35x40x27 tn	23.4	35	40	27	24500	48000	11000
	K35X40X27	28	35	40	27	27800	62100	11000
	K35X40X30	43	35	40	30	25000	49500	11000
	K35X42X16	34	35	42	16	23900	37000	11000
	K35X42X18	39.2	35	42	18	27000	42500	11000
	K35X42X30	62.4	35	42	30	38500	67500	11000
	K35x43x18	38	35	43	18	28000	41500	11000
	K35X45X20	55.5	35	45	20	36500	49500	10000
	K35X45X30	80	35	45	30	52500	78500	10000
	K35X45X49	120	35	45	49	81500	13400	10000
	K35X40X30 ZW	48	35	40	30	31500	65500	11000
	K35X42X20 ZW	41	35	42	20	29500	48500	11000
36	K36X41X30	52	36	41	30	23000	43000	11000
36	K36X42X16	50	36	42	16	24000	42000	11000
37	K37X42X17	25.8	37	42	17	21900	42500	10000
	K37X42X27	40.7	37	42	27	31500	67500	10000
	K37X45X26	60.5	37	45	26	43500	73500	10000
38	K38X43X17	26.9	38	43	17	20000	38000	10000
	K38X43X27	43.2	38	43	27	31000	67500	10000
	K38X46X20	46	38	46	20	35000	56500	10000
	K38X46X32	72.7	38	46	32	54500	98500	10000
39	K39X44X24	38	39	44	24	28000	58500	10000
39	K39X44X26 ZW	45	39	44	26	27000	55500	10000
40	K40X44X13	20	40	44	13	13500	28000	10000
	K40X45X13	21.5	40	45	13	17100	32000	10000
	K40X45X17	27.4	40	45	17	20900	41000	10000
	K40X45X21	36.5	40	45	21	24400	49500	10000
	K40X45X27	46	40	45	27	32500	72500	10000
	K40X46X17	30	40	46	17	24500	44500	9000
	K40X47X18	45.2	40	47	18	29000	49500	9000
	K40X47X20	42	40	47	20	32000	56500	9000
	K40X48X20	57.7	40	48	20	35500	58500	9000
	K40X45X30 ZW	48	40	45	30	26000	53500	9000
42	K42X47X13	22.5	42	47	13	17300	33000	9000
	K42X47X17	31.1	42	47	17	21100	42500	9000
	K42X47X25 TN	25.4	42	47	25	27000	57500	9000
	K42X47X27	46.6	42	47	27	33000	74500	9000
	K42X48X35	60	42	48	35	35000	76000	9000
	K42X50X18	53	42	50	18	31000	49500	9000
	K42X50X20	54	42	50	20	34500	56500	9000
	K42X47X30 ZW	54	42	47	30	31000	75500	9000
43	K43X48X17	29.3	43	48	17	21000	42500	9000
	K43X48X27	45.7	43	48	27	33000	74500	9000
	K43x50x18	48.5	43	50	18	30500	53500	9000
45	K45X49X19	27	45	49	19	17500	40000	8000
	K45X50X17	25.5	45	50	17	22000	45000	8000
	K45X50X27	50	45	50	27	34000	79500	8000
	K45X50X32 TN	45	45	50	32	38000	90500	8000
	K45X52X18	51	45	52	18	31000	56500	8000
	K45X52X21 TN	32.9	45	52	21	39500	57500	8000
	K45X53X20	62.2	45	53	20	38500	66500	8000
	K45X53X21	65	45	53	21	38000	66500	8000
	K45X53X22	68.4	45	53	22	42000	66500	8000
	K45X53X28	78	45	53	28	51500	97500	8000
	K45x59x18 tn	60.5	45	59	18	43500	53500	7000
	K45X59X32	145.5	45	59	32	72500	101500	7000
	K45X59X36	195	45	59	36	75500	108500	7000
	K45x51x36 zw	85	45	51	36	44500	98500	7000
47	K47X52X17	32	47	52	17	22800	48500	8000
	K47X52X27	50.7	47	52	27	34500	82500	8000
	K47X53X25	53	47	53	25	38000	81500	8000
	K47X55X28	62.4	47	55	28	52500	99500	7500
48	K48X54X19	44	48	54	19	30000	60500	7500
48	K48X54X25	55	48	54	25	31000	91000	7500
50	K50x55x13.5	31	50	55	13.5	17500	36000	7500
	K50x55x17	35	50	55	17	21400	46500	7500
	K50X55X20	39.4	50	55	20	26000	59500	7500
	K50x55x30	59.4	50	55	30	38500	96500	7500
	K50x57x18	53.4	50	57	18	33000	62500	7000
	K50x58x20	64.9	50	58	20	35000	61500	7000
	K50x58x25	81	50	58	25	43500	80500	7000
52	K52x57x12	24	52	57	12	17500	36000	7000
55	K55X60X20	43.4	55	60	20	28000	65500	6500
	K55x60x27	60.5	55	60	27	37500	96500	6500
	K55X60X30	68.6	55	60	30	40500	10300	6500
	K55X61X20	56	55	61	20	41000	11000	6500
	K55X62X18	52	55	62	18	35000	69500	6500
	K55x63x15	53	55	63	15	24500	40500	6500
	K55X63X20	73.3	55	63	20	39500	73500	6500
	K55x63x25	88	55	63	25	49500	99500	6500
	K55x63x32	117	55	63	32	61500	129500	6500
	K55X60X40 ZW	96.5	55	60	40	48000	13200	6500
56	K56x61x20	45	56	61	20	27000	64500	6500
58	K58x63x17	42	58	63	17	21500	63500	6000
	K58X64X19	53	58	64	19	24500	77500	6000
	K58X65X18	52	58	65	18	34500	69500	6000
	K58X65X38 ZW	106	58	65	38	48500	106500	6000
60	K60X65X20	50.5	60	65	20	29000	71500	6000
	K60X65X30	71.2	60	65	30	42000	115500	6000
	K60X68X20	79	60	68	20	43000	84500	5500
	K60X68X23	94	60	68	23	49000	100500	5500
	K60X68X25	97	60	68	25	52500	110500	5500
	K60X68X27	98	60	68	27	59000	120500	6000
	K60X75X42	240	60	75	42	11300	19200	5500
	K60X66X33 ZW	104	60	66	33	45500	111500	5500
	K60x66x40 zw	116	60	66	40	57500	150500	5500
	K60X68X30 ZW	136	60	68	30	44000	87500	5500
	K60X68X34 ZW	140	60	68	34	47500	95500	5500
62	K62X70X40 ZW	174	62	70	40	65500	145500	5500
63	K63X70X21	75	63	70	21	45000	100500	5500
64	K64X70X16	53	64	70	16	27500	59500	5500
65	K65X70X20	49	65	70	20	30000	76500	5500
	K65X70X30	83	65	70	30	43500	123500	5500
	K65X73X23	100	65	73	23	45500	93500	5000
	K65X73X30	126	65	73	30	56500	122500	5000
68	K68X74X20	65	68	74	20	35000	83500	5000
	K68X74X30	97	68	74	30	46000	117500	5000
	K68X74X35 ZW	116	68	74	35	48000	124500	5000
	K68X75X20	120	68	75	20	53500	127500	4500
70	K70X76X20	70	70	76	20	35500	85500	4500
	K70X76X30	100	70	76	30	51500	138500	4500
	K70X78X25	115	70	78	25	51500	111500	4500
	K70X78X30	136	70	78	30	59500	134500	4500
	K70X80X30	150	70	80	30	72500	147500	4500
	K70x78x46 zw	230	70	78	46	77500	18800	4500
72	K72X80X20	94	72	80	20	41000	84500	4500
73	K73X79X20	69	73	79	20	36500	99500	4500
75	K75X81X20	72	75	81	20	37000	93500	4500
	K75X81X30	106	75	81	30	51500	142000	4500
	K75X83X23	113	75	83	23	49500	108000	4000
	K75X83X30	147	75	83	30	61500	142000	4000
	K75x83x35 zw	165	75	83	35	62500	146500	4000
	K75x83x40 zw	190	75	83	40	72500	176500	4000
80	K80X86X20	76	80	86	20	38000	97500	4000
	K80X86X30	114	80	86	30	55500	158500	4000
	K80X88X30	141	80	88	30	71500	178500	4000
	K80X88X40 ZW	204	80	88	40	75500	191500	4000
	K80X88X46 ZW	235	80	88	46	87500	23000	4000
85	K85X92X20	96	85	92	20	44000	107500	3500
90	K90X97X20	103	90	97	20	44500	112500	3000
	K90X98X27	150	90	98	27	60500	149500	3000
	K90X98X30	172	90	98	30	67500	171500	3000
95	K95X102X20	110	95	102	20	45500	122500	2900
	K95X102X30	177	95	102	30	68500	179500	2900
	K95X103X40 ZW	250	95	103	40	82500	227500	2900
100	K100X107X21	120	100	107	21	47500	126500	2700
	K100X108X27	176	100	108	27	56500	142500	2700
	K100X108X30	190	100	108	30	70500	187500	2700
105	K105X112X21	123	105	112	21	47000	126500	2500
105	K105X113X30	198	105	113	30	71500	196500	2500
110	K110X117X24	172	110	117	24	55500	157500	2300
110	K110X118X30	217	110	118	30	77500	218500	2300

Recomendar produtos
