Drawn Cup Full Complement Needle Roller Bearings

QY964

Features :
can support high to very high radial forces.
are used when the load carrying capacity or accuracy of drawn cup needle roller bearings with open ends is no longer sufficient and the high load capacity of cylindrical roller bearings is not yet required.
can only support radial loads and, as a result, are highly suitable for use as non-locating bearings (they permit axial displacement of the shaft relative to the housing in the bearing)
permit high speeds in spite of line contact.
compensate misalignments between the shaft and housing (aligning needle roller bearings).
require only a very small radial design envelope, particularly if the bearing arrangement is designed without an inner ring.
are available in numerous sizes and designs.
result in particularly compact, cost-effective and economical bearing arrangements.

Classification :

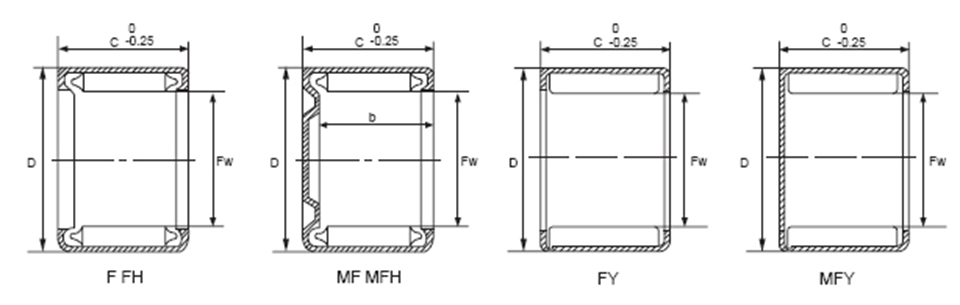

It is divided into the following structures: F, FH, MF, MFH, FY, MFY, B, BH, M, MH, D, DL... P, DLF, DLF... P, NA, RNA, etc.
For specific models, please consult us.

Quantity:

Contact Now

Shaft Diameter	Bearing Number	Weight	Boundary Dimensions			Basic Load Rating		Limiting Speed
Shaft Diameter	Bearing Number	Weight	Fw	D	C	Cr	Cor	Oil
mm		g	mm			N		rpm
6	F-0608	2.5	6	10	8	3080	5800	12000
6.35	F-6.35x11.11x11.13	3.2	6.35	11.11	11.13	3500	6050	12000
6.35	MF6.35x11.11x11.13	4.1	6.35	11.11	11.13	3500	6050	12000
8	F-0810	3.7	8	12	10	4050	7150	13000
	FH-0810	7	8	14	10	5200	7150	7400
	FH-0812	9	8	14	12	4550	7150	7400
9	F-0910	4	9	13	10	4900	8050	12000
	FH0910	6	9	15	10	8000	11500	7100
	FH9x15x13	8	9	15	13	8560	12800	7100
9.52	F-9.52x14.29x12.7	7.5	9.25	14.29	12.7	9000	13300	7100
10	F-1010	4.2	10	14	10	5700	9350	11000
	FH-1010	6.5	10	16	10	6350	10800	11000
	F10x16x15	12	10	16	15	6890	11500	7100
			10	16	17	6500	11000	7000
12	F-1212	6	12	16	12	6380	10900	7100
	F12x17x12	8	12	17	12	8400	11900	7100
	F12x17x15	10.5	12	17	15	9000	12500	7100
	F12x17x18	13	12	17	18	9800	13500	7100
15	F15x20x12	10	15	20	12	8400	11900	7100
	F15x20x16	13.6	15	20	16	9500	12800	7100
	F15x20x20	17.2	15	20	20	10500	16000	7100
	FY15x20x20	20	15	20	20	10500	16000	7100
	F-1512	12	15	21	12	9700	15900	8100
16	F-1616	17	16	22	16	14100	25900	7700
17	F-1712	13	17	23	12	10600	21600	7300
	F-1714	15	17	23	14	12500	22500	7300
	F-1718	21	17	23	18	13800	24800	7300
	F-1722	26	17	23	22	13500	24000	7100
18	F1816	18	18	24	16	15000	29100	6900
20	F-2014	17	20	26	14	15800	40500	6900
	F-2020	26	20	26	20	18800	42500	6900
	F20x26x25	33	20	26	25	20500	35500	6300
25	F-2516	28	25	32	16	18700	37900	5100
	F-2522	40	25	32	22	11000	16500	5100
	F25x32x25	43	25	32	25	11500	18500	5100
	F25x33x08	16.7	25	33	8	12200	16800	4300
28	F-2820	118	28	35	20	25700	58300	4600
30	F-3020	42	30	37	20	26800	62500	4300
	MF-3020	48	30	37	20	26800	62500	4300
	F30x38x16	37.5	30	38	16	25500	57500	4600
	F30x38x24	37.5	30	38	24	28800	64500	4300
	F30x38x32	81.5	30	38	32	34500	78900	4300
32	F32x39x32		32	39	32	35000	74000	4300
32	F-3216	35	32	39	16	25800	61500	4300
35	F-3520	49	35	42	20	24000	69100	3700
	F35x43x16	41	35	43	16	23500	68000	3700
	F35x43x25	72	35	43	25	38700	86200	3200
	F35x43x32	90	35	43	32	40500	97800	3200
40	F-4020	56	40	47	20	30300	82600	3300
	FH4032	88	40	50	32	42500	108000	2600
	MFH-4032	95	40	50	32	42500	108000	2600
	FH40x50x38	105	40	50	38	44800	118500	2600
45	F-4520	62	45	52	20	30400	90100	2900
45	FH45x55x38	140	45	55	38	45800	12800	2900
50	F-5020	78	50	58	20	35800	98000	2600
50	FH50x60x38	145	50	60	38	50500	145800	2600
60	F60x68x40	185	60	68	40	50200	145800	2600
