Drawn Cup Needle Roller Bearings & With Ring

QY965

Drawn cup needle roller bearing with open ends offer a very small radial section height. The thin-walled, drawn cup outer rings and needle roller and cage assemblies allow the design of the particularly compact and easy‑to‑fit bearing arrangements with high radial load carrying capacity. They help to provide maximum capacity in minimal radial space. Mount with press fit in housing.
This series of products offers a variety of structures to choose from, such as HK, BK, TA, TLA, TAM, TLAM, SCE, SCH, BA, BHA, J, JH, HK... RS, DK... 2RS, BK... RS, etc.

For specific models, please consult us.

Quantity:

Contact Now

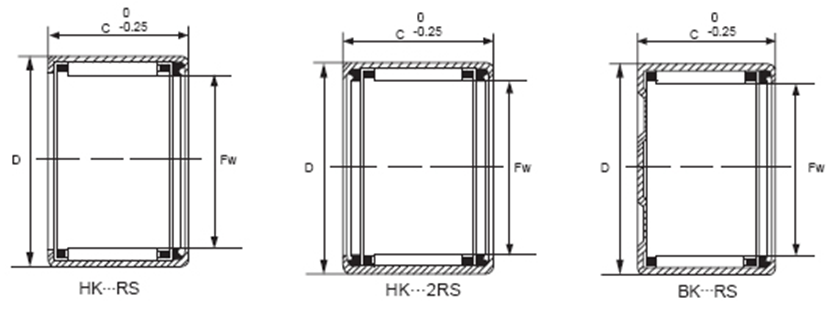

Shaft Dia.	Bearing Designation	Weight	Boundary Dimensions			Basic Load Rating		Limiting Speed
Shaft Dia.		Weight	Fw	D	C	Cr Dyn.	Cor Stat.	Oil
mm		g	mm			N		r/min
3	HK0306TN		3	6.5	6	1320	950	6000
3	BK0306TN		3	6.5	6	1320	950	6000
4	HK0408TN	1.6	4	8	8	1540	1070	40000
4	BK0408TN	1.8	4	8	8	1540	1070	40000
5	HK0509TN		5	11	9	2200	1790	36000
	HK0509	2	5	9	9	2200	1790	36000
	BK0509	2.1	5	9	9	2200	1790	36000
	HK0510		5	9	10
6	HK0606		6	10	6
	HK0607	1.8	6	10	7	1600	1400	30000
	HK0608	2.1	6	10	8	1830	1550	32000
	BK0608	2.2	6	10	8	1830	1550	32000
	HK0609	2.2	6	10	9	2650	2400	30000
	BK0609	2.6	6	10	9	2650	2400	30000
	HK0611	2.3	6	10	11	1700	1500	29000
	HK06X12X8	2.5	6	12	8	2230	2010	33000
7	HK0708		7	11	8	2800	2150	27000
	HK0709	2.3	7	11	9	2800	2150	27000
	BK0709	2.9	7	11	9	2800	2150	27000
	HK0712		7	11	12
	HK07X12X08	2.2	7	12	8	3300	3220	37000
	HK07X12X09	2.4	7	12	9	3400	3150	37000
8	HK0808	2.7	8	12	8	2550	2400	21000
	HK0808TN		8	12	8
	BK0808	3	8	12	8	2550	2400	21000
	HK0810	3	8	12	10	3700	3450	21000
	BK0810	3.4	8	12	10	3700	3450	21000
	HK0812		8	12	12
	HK08X14X10	5.35	8	14	10	3800	3950	25000
	BK08X14X10	5.8	8	14	10	3800	3950	25000
	HK08X14X12	6.6	8	14	12	4100	4320	25000
9	HK0908	3	9	13	8	3650	4050	25000
	BK0908	3.4	9	13	8	3650	4050	25000
	HK0910	4	9	13	10	4050	4250	25000
	BK0910	4.3	9	13	10	4050	4250	25000
	HK0911	4.1	9	13	11	4300	4700	25000
	HK0912	4.6	9	13	12	5000	6000	25000
	BK0912	4.9	9	13	12	5000	6000	25000
	HK09X15X10	5.6	9	15	10	5300	6300	25000
10	HKl0X13X08	3.5	10	13	8	4100	4800	20000
	HKl010	4.1	10	14	10	3900	4800	19000
	BKl010	4.3	10	14	10	3900	4800	19000
	HKl012	4.8	10	14	12	5000	6300	19000
	BKl012	5	10	14	12	5000	6300	19000
	HKl015	6	10	14	15	6700	7800	19000
	BKl015	6.2	10	14	15	6700	7800	19000
	HKl0X15X15	6.5	10	15	15	6800	8800	18000
	HKl0X16X10	6.5	10	16	10	6800	8800	18000
	BKl0X16X10	6.8	10	16	10	6800	8800	18000
	HKl0X16X12	7.5	10	16	12	6800	8800	18000
	HKl0X16X15	11	10	16	15	6800	8800	19000
	HKl0X17X15	11.5	10	17	15	7200	8000	19000
	HKl0X18X12	8.5	10	18	12	7200	8000	19000
12	HKl208	3.3	12	16	8	7200	8000	19000
	HKl210	4.6	12	16	10	4150	5800	19000
	BKl210	5.2	12	16	10	4150	5800	19000
	HKl212	5.6	12	18	12	3800	5100	15000
	BKl212	6.2	12	16	12	3800	5100	15000
	HKl2X17X12	7.5	12	17	12	5100	7000	15000
	HKl2X17X15	9.5	12	17	15	5100	7000	15000
	HKl2X17X18	11	12	17	18	5100	7000	15000
	HKl2X18X12	9.1	12	18	12	5500	6300	17000
	BKl2X18X12	10.3	12	18	12	5500	6300	17000
	HKl2X18X14	10.6	12	18	14	6500	6300	15000
	HKl2X19X12	10	12	19	12	6800	7400	15000
13	HKl311	8.5	13	19	11	6300	6300	14000
	HKl312	8.9	13	19	12	6200	7100	17000
	BKl312	11.2	13	19	12	6200	7100	17000
13.5	HKl3.5X19X12		13.5	19	12	6200	7100	16000
13.5	HKl3.5X20X12	10.8	13.5	20	12	6250	7590	16000
14	HKl410	8.3	14	20	10	6700	7000	16000
	BKl410	12.1	14	20	10	6700	7000	16000
	HKl412	10.5	14	20	12	6800	7500	16000
	HKl416	13.9	14	20	16	7300	9000	14000
	HKl418		14	20	18	7300	9000	14000
15	HKl5X20X12	8.4	15	20	12	5800	6000	14000
	HKl5X20X16	11.4	15	20	16	6000	6200	14000
	HKl5X20X20	13.8	15	20	20	6100	6400	14000
	HKl512	11.1	15	21	12	7000	8400	14000
	BKl512	12.7	15	21	12	7000	8400	14000
	HKl514	12.7	15	21	14	8500	10400	13000
	HKl515	14.2	15	21	15	9100	11400	13000
	BKl515		15	21	15	9800	11400	14000
	TAl515		15	22	15		11400	11400
	TAl515Z		15	22	15		11400	11400
	HMKl515		15	22	15
	HKl516	15	15	21	16	9800	11400	14000
	BKl516	16.5	15	21	16	9800	11400	14000
	HKl518		15	21	18
	HKl520		15	21	20
	HMKl520		15	22	20
	HKl522	20.4	15	21	22	10400	16500	14000
	BKl522	22	15	21	22	10400	16500	14000
	HKl5X22X12	12.5	15	22	12	14300	18400	13000
	HKl5X22X12.5	13.5	15	22	12.5	14300	18400	13000
16	HKl6X21X06	5.5	16	21	6	4200	5300	12000
	HKl6X21X09	7.5	16	21	9	4400	5600	12000
	HKl610		16	22	10
	HKl612	11.7	16	22	12	7100	9200	14000
	BKl612	13.8	16	22	12	7100	9200	14000
	HKl612K		16	22	12
	HKl614	14.4	16	22	14	8800	9900	12000
	HKl616	15.8	16	22	16	10100	14300	14000
	BKl616	17.6	16	22	16	10100	14300	14000
	HKl616-Asl		16	22	16
	HKl617	18	16	22	17	12900	17200	12000
	HKl620		16	22	20
	HKl622	21.7	16	22	22	11100	17400	14000
	BKl622	23.4	16	22	22	11100	17400	14000
17	HKl7X21.5X15	10	17	21.5	15	6300	8600	11000
	HKl712	12.2	17	23	12	6900	9300	13000
	BKl712	14.5	17	23	12	6900	9300	13000
	HKl714	14	17	23	14	6800	10200	10000
	HKl716	15.9	17	23	16	8500	12500	10000
	BKl716		17	23	16	8500	12500	10000
	HKl718	19	17	23	18	9500	10600	10000
	HKl720		17	23	20	10000	11800	10000
	HKl722	17	17	23	22
	HKl7X24X15	17	17	24	15	11200	12800	10000
	HKl7X25X14	17.7	17	25	14	13100	14700	10000
	HKl7X25X15.5	20	17	25	15.5	9320	10400	10000
	HKl7X25X18	23.5	17	25	18	9500	10600	11000
18	HKl812	13.1	18	24	12	7100	9900	12000
	BKl812	14.9	18	24	12	7100	9900	12000
	HKl816	17.5	18	24	16	10600	15300	12000
	BKl816	19.9	18	24	16	10600	15300	12000
	HKl8X24X20	18	18	24	20
	HMKl825		18	25	25
19	HKl9X27X16	23	19	27	16	8100	9500	10500
20	HK2010	11.8	20	26	10	5900	7200	10000
	BK2010	14	20	26	10	5900	7200	10000
	HK2011	12	20	26	11	7500	9200	9000
	HK2012	14.1	20	26	12	7600	10100	10000
	BK2012	16.7	20	26	12	7600	10100	10000
	HK2014	15.7	20	26	14	9700	18100	9000
	HK2016	19.3	20	26	16	11700	29100	10000
	BK2016	22.3	20	26	16	11700	29100	10000
	HK2018	23.3	20	26	18	7900	12800	9000
	HK2020	24.1	20	26	20	13700	24000	10000
	BK2020	27.1	20	26	20	13700	24000	10000
	HK2025	28	20	26	25	9100	14800	9900
	HK2030	41	20	26	30	21800	40000	10100
	BK2030	43	20	26	30	21800	40000	10100
	HK20X27X18		20	27	18	26000	47200	9900
	HK20X27X20		20	27	20	26300	47800	9900
	HK20X27X30		20	27	30	28500	48800	9900
	HK20X28X16	28.5	20	28	16	29600	49800	9900
	HK20X29X18	41	20	29	18	30900	54600	9900
22	HK22X28X7.5TN	8.8	22	28	7.5	5200	7000	10100
	HK2210	12.3	22	28	10	7200	9500	10100
	HK2212	15	22	28	12	8100	10400	10100
	BK2212	18.1	22	28	12	8100	10400	10100
	HK2216	20.9	22	28	16	11400	18100	10100
	BK2216	24.3	22	28	16	11400	18100	10100
	HK2220	26.2	22	28	20	14500	25000	10100
	BK2220	29.9	22	28	20	14500	25000	10100
	HMK2225		22	29	25
	HK2230	32	22	28	30	17500	30400	9000
	HK22X29X25	37	22	29	25	18100	31500	9000
	HK22X25X30	43	22	29	30	19400	33100	9000
	HK22X30X14	21.9	22	30	14	19800	34000	9000
24	HK24X30X7.5TN	10.6	24	30	7.5	5800	7200	10000
25	HK2512	20	25	32	12	10000	14200	9000
	BK2512	23.2	25	32	12	10000	14200	9000
	HK2514	21.9	25	32	14	13600	18700	9000
	HK2516	27.3	25	32	16	13600	20000	9000
	BK2516	31	25	32	16	13600	50000	9000
	HK2518	28.2	25	32	18	17500	25800	9000
	HK2520	34.1	25	32	20	17900	30000	9000
	BK2520	38.7	25	32	20	17900	30000	9000
	HK2525	40	25	32	25	22200	36700	9000
	HK2526	44.8	25	32	26	22500	42000	9000
	BK2526	49	25	32	26	22500	42000	9000
	HK2538	64.7	25	32	38	30000	58000	9000
	BK2538	69	25	32	38	30000	58000	9000
	HK25X33X10	17	25	33	10	34800	69600	9000
	HK25X33X15	27.4	25	33	15	35700	70000	9000
	HK25X35X20	44.9	25	35	20	36100	78650	9000
28	HK2812		28	35	12
	HK2816	30.1	28	35	16	15400	22500	8700
	BK2816	34.1	28	35	16	15400	22500	8700
	HK2818	31.7	28	35	18	18500	29300	8700
	HK2820	37.6	28	35	20	18900	32000	8700
	BK2820	43	28	35	20	18900	32000	8700
	HK2825		28	35	25
	HK2830		28	35	30
	HK2833		28	35	33
30	HK3012	24	30	37	12	10100	16200	8100
	BK3012	27.9	30	37	12	10100	16200	8100
	HK3016	32	30	37	16	15200	27000	8100
	BK3016	37.1	30	37	16	15200	27000	8100
	HK3018	33.6	30	37	18	19200	31500	8100
	HK3020	40.1	30	37	20	19700	33500	8100
	BK3020	46.5	30	37	20	19700	33500	8100
	HK3020-K		30	37	20
	HMK3020		30	40	20
	HK3024		30	37	24
	HMK3025		30	40	25
	HK3026	52.9	30	37	26	24000	50000	8100
	BK3026	59.4	30	37	26	24000	50000	8100
	HK3030		30	37	30
	HMK3030		30	40	30
	HK3038	76.1	30	37	38	32500	74000	8100
	BK3038	82.5	30	37	38	32500	74000	8100
	HK30X38X12	28	30	38	12	38100	80000	8100
	HK30X38X16	32.7	30	38	16	39000	82000	8100
	HK30X38X24	49	30	38	24	39910	88800	8100
	HK30X38X32	69	30	38	32	38890	88700	8100
32	HK32X38X11	17	32	38	11	19700	43200	7800
	HMK3220		32	42	20
	HK3224	50.7	32	38	24	25500	52000	7300
	HK3232	66.4	32	39	32	22600	54300	7100
	HK32X19X16		32	19	16
	HK32X40X32	72.7	32	39	32	27990	59890	7100
	HK32X41X16		32	41	16
35	HK3512	27.7	35	40	12	12100	19300	7100
	BK3512	32.9	35	42	12	12100	19300	7100
	HK3516	36.9	35	42	16	15700	27500	7100
	BK3516	43.8	35	42	16	15700	27500	7100
	HK3520	46.1	35	42	20	20800	41000	7100
	BK3520	54.8	35	42	20	20800	41000	7100
	HK3520/ASI		35	42	20
	HK3524		35	42	24
	BK3530		35	42	30
	HK3530		35	42	30
	HMK3520		35	45	20
	HMK3525		35	45	25
	HMK3530		35	45	30
	HK35X42X16	37	35	42	16	24200	47100	7100
	HK35X43X25	60.5	35	43	25	24440	48200	6200
	HK35X43X32	80	35	43	32	24870	48880	6200
	HK35X45X12	31	35	45	12	24870	48880	6200
36	HK36X42X12	23	36	42	12	15000	21000	6200
38	HK3818		38	45	18
38	HK38X48X30	102	38	48	30	16100	24100	6000
40	HK4012	31.1	40	47	12	14000	24300	6300
	BK4012	38.2	40	47	12	14000	24300	6300
	HK4016	41.4	40	47	16	20000	38500	6300
	BK4016	51	40	47	16	20000	38500	6300
	HK4020	51.8	40	47	20	25500	52000	6300
	BK4020	62	40	47	20	25500	52000	6300
	HK4020/ASI		40	47	20
	HK4026		40	47	26
	HK4030		40	47	30
	HMK4020		40	50	20
	HK4025		40	50	25
	HMK4030		40	50	30
	HK40X50X32	114.3	40	50	32	23000	42000	6000
	HK40X50X38	130.8	40	50	38	24100	43000	6000
45	HK4512	34.8	45	52	12	12900	22500	5800
	BK4512	45	45	52	12	12900	22500	5800
	HK4512-K		45	52	12
	HK4516	46.2	45	52	16	19300	38000	5800
	BK4516	56	45	52	16	19300	38000	5800
	HK4520	56	45	52	20	22000	51000	5800
	BK4520	72	45	52	20	22000	51000	5800
	HK4520-ASI		45	52	20
	HK4520-K		45	52	20
	HK4520-YA		45	52	20
	HMK4525		45	55	25
	HMK4530		45	55	30
	HMK4538		45	55	38
	HK45X55X38	135	45	55	38	27600	61000	5300
50	HK50X57X16	51.2	50	57	16	15200	32500	5300
	HK5012	44.2	50	58	12	23600	57200	5300
	HK5020	72	50	58	20	28000	60000	5300
	BK5020	87.3	50	58	20	28000	60000	5300
	HK5025	90.1	50	58	25	34500	80000	5300
	BK5025	109	50	58	25	34500	80000	5300
55	HK50X60X38	140	50	60	38	27770	63100	4600
	HK5520	78	55	63	20	29500	59900	4600
	BK5520	93.8	55	63	20	29500	59900	4600
	HK5525	109	55	63	25	33200	69980	4600
	HK5528	111	55	63	28	39090	98000	4600
	BK5528	132	55	63	28	39090	98000	4600
60	HK6012	49.2	60	68	12	12400	29000	4100
	BK6012	77	60	68	12	12400	29000	4100
	HK6020	86	60	68	20	30500	72000	4100
	BK6020	105	60	68	20	30500	72000	4100
	HK6032	136	60	68	32	50000	131000	4100
	BK6032	164	60	68	32	50000	131000	4100

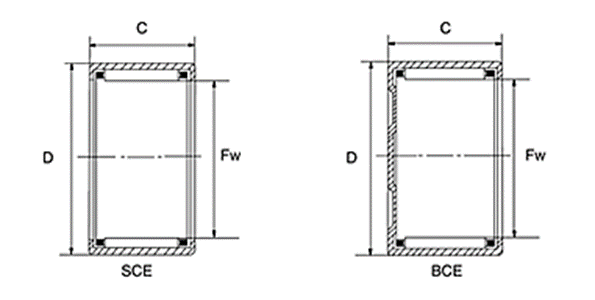

Shaft Diameter	Bearing Number	Weight	Boundary Dimensions			Basic Load Rating		Limiting Speed
			Fw	D	C	Cr	Cor	Oil
			Fw	D	C	Cr	Cor	Oil
mm		Kg	mm			N		rpm
3.97	SCE 21/4TN	0.001	3.97	7.15	6.35	1260	940	44000
4.762	SCE 34TN	0.001	4.762	8.731	6.35	1790	1360	21000
6.35	SCE 47	0.004	6.35	11.112	11.112	4100	3900	35500
	SCE 49	0.005	6.35	11.112	14.287	4100	3900	35000
	SCE 49PP	0.005	6.35	11.112	14.29	4100	3900	35000
7.938	SCE 55	0.0032	7.938	12.7	7.938	2892	2625	29000
	SCE 56P	0.006	7.938	12.7	9.52	2900	2600	23000
	SCE 57	0.006	7.938	12.7	11.11	4700	4850	32500
	SCE 59	0.003	7.938	12.7	14.29	6000	6600	32500
9.525	SCE 65	0.004	9.525	14.288	7.94	2892	2417	25000
	SCE 66	0.006	9.525	14.288	9.52	3900	3950	29500
	SCE 68	0.0065	9.525	14.288	12.7	5800	6600	30000
	SCE 68K	0.0065	9.525	14.288	9.271	3900	3950	29500
	SCE 69P	0.007	9.525	14.288	14.29	5800	6600	20000
	SCE 69	0.007	9.525	14.288	14.29	5800	6600	20000
	SCE 610PP	0.007	9.525	14.288	15.88	7400	9100	29500
11.112	SCE 78	0.005	11.112	15.875	12.7	6400	7800	25000
12.7	SCE 85	0.0047	12.7	17.462	7.94	3650	3950	26500
	SCE 86	0.006	12.7	17.462	9.52	4650	5400	26500
	SCE 86A	0.007	12.7	17.462	9.52	4650	5400	26500
	SCE 87	0.006	12.7	17.462	11.11	7340	7800	22000
	SCE 88	0.009	12.7	17.462	12.7	6897	9033	19000
	SCE 810ZOH	0.009	12.7	17.462	15.88	8811	12237	19000
	SCE 810PP	0.009	12.7	17.462	15.88	8811	12237	19000
14.288	SCE 96	0.005	14.288	19.05	9.52	5162	6408	18000
	SCE 98	0.008	14.288	19.05	12.7	7698	10769	18000
	SCE 910	0.01	14.288	19.05	15.88	9434	14017	18000
	SCE 912	0.013	14.288	19.05	19.05	10724	16465	18000
15.875	SCE 105	0.0075	15.875	20.638	7.94	4300	5200	17600
	SCE 107-1/2	0.009	15.875	20.638	11.91	7100	10300	17600
	SCE 108	0.01	15.875	20.638	12.7	8743	12015	16000
	SCE 109P		15.875	20.638	14.29	8743	12015	16000
	SCE 1010	0.011	15.875	20.638	15.88	10368	16242	16000
	SCE 1010PP	0.013	18.875	20.638	15.88	10368	16242	16000
	SCE 1012	0.014	15.875	20.638	19.05	12015	19802	16000
	SCE 1012PP	0.014	15.875	20.638	19.05	12015	19802	16000
17.462	SCE 118	0.014	17.462	22.225	12.7	8600	13200	16000
17.462	SCE 1112	0.016	17.462	22.225	19.05	12400	21000	16000
19.05	SCE 128	0.013	19.05	25.4	12.7	9800	12500	14700
	SCE 129P	0.019	19.05	25.4	14.29	10000	13500	15200
	SCE 1210PPR	0.017	19.05	25.45	15.88	12682	17577	13000
	SCE 1211(P)	0.018	19.05	25.4	17.46	15352	22250	13000
	SCE 1212	0.021	19.05	25.4	19.05	15352	22250	13000
	SCE 1214PP	0.023	19.05	25.4	22.22	16140	23800	16000
20.638	SCE 1312	0.024	20.638	26.988	19.05	16020	23585	12000
22.225	SCE 146	0.013	22.225	28.575	9.52	8200	10700	12600
	SCE 148	0.019	22.225	28.575	12.7	11125	15797	11000
	SCE 148-OH	0.019	22.225	28.575	12.7	11125	15797	11000
	SCE 1412	0.028	22.225	28.575	19.05	16910	27145	11000
	SCE 1416	0.034	22.225	28.575	25.4	22100	38000	12600
25.4	SCE 168	0.019	25.4	31.75	12.7	12682	19135	10000
	SCE 1612	0.027	25.4	31.75	19.05	18022	30260	10000
	SCE 1616	0.038	25.4	31.75	25.4	24920	45390	10000
	SCE 1616PP	0.038	25.4	31.75	25.4	24920	45390	10000
28.575	SCE 188	0.021	28.575	34.925	12.7	12905	20247	9000
28.575	SCE 1816	0.04	28.575	34.925	25.4	25810	49395	9000
31.242	SCE 2020A	0.056	31.242	38.1	31.75	33500	71000	8200
31.75	SCE 2010	0.03	31.75	38.1	15.88	21137	39605	8000
	SCE 2012	0.037	31.75	38.1	19.05	16500	29000	8000
	SCE 2016	0.045	31.75	38.1	25.4	27145	54735	8800
	SCE 2020	0.056	31.75	38.1	31.75	33500	71000	8200
34.925	SCE 228	0.025	34.925	41.275	12.7	13600	23700	8000
	SCE 2212	0.039	34.925	41.275	19.05	21360	42720	7500
	SCE 2216	0.058	34.925	41.275	25.4	27590	59185	7500
	SCE 2220	0.081	34.925	41.275	31.75	34000	77000	8000
38.1	SCE 2416	0.083	38.1	47.625	25.4	38715	66305	6500
38.1	SCE 2420	0.105	38.1	47.625	31.75	47500	86000	6700
41.275	SCE 2620	0.11	41.275	50.8	31.75	51000	97000	6800
44.45	SCE 2812	0.082	44.45	53.975	19.05	31500	55000	6300
	SCE 2816	0.115	44.45	53.975	25.4	41385	75650	6000
	SCE 2824	0.163	44.45	53.975	38.1	62000	130000	6300
50.8	SCE 3216	0.102	50.8	60.33	25.4	41500	80000	5100
50.8	SCE 3220	0.14	50.8	60.325	31.75	55180	115700	5000

Recommend Products

Send Message
