SA Insert Bearings

QY827

The SA series bearings can be made of various materials such as bearing steel, stainless steel, plastic, and ceramics.

For more models, please contact us.

Quantity:

Contact Now

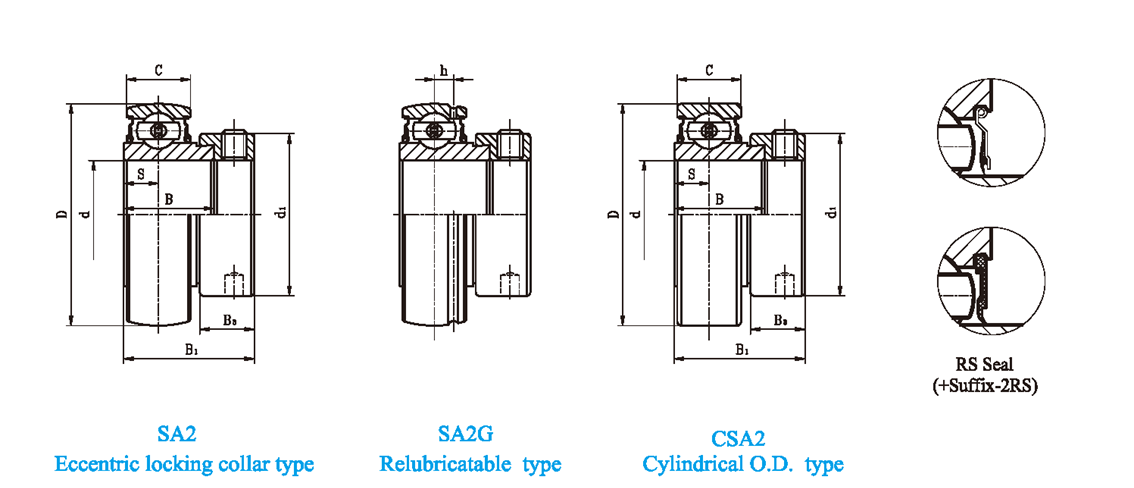

Bearing No.	Boundary Dimensions（mm inch）									Basic Load Rating(N)		Weight
	d	D	B1	B	C	S	h	B3	d1	Dynamic Cr	Static Cor	Kg(pc)
SA201	12	40 1.5748	28.6 1.1260	19.1 0.7520	12 0.4724	6.5 0.2559	3.6 0.1417	13.5 0.5315	27.2 1.0709	9550	4780	0.12
SA201-8	1/2											0.12
SA202	15											0.1
SA202-10	5/8											0.1
SA203	17											0.09
SA203-11	11/16											0.09
SA204	20	47 1.8504	30.9 1.2165	21.4 0.8425	14 0.5512	7.5 0.2953	4 0.1575	13.5 0.5315	32.4 1.2756	12800	6650	0.16
SA204-12	3/4											0.16
SA205	25	52 2.0472	30.9 1.2165	21.4 0.8465	15 0.5906	7.5 0.2954	4 0.1693	13.5 0.5316	37.4 1.4724	14000	7880	0.2
SA205-13	13/16											0.22
SA205-14	7/8											0.21
SA205-15	15/16											0.21
SA205-16	1											0.2
SA206	30	62 2.4409	35.7 1.4055	23.8 0.9370	16 0.6299	9 0.3543	5 0.1569	15.9 0.6260	44.1 1.7362	19500	11200	0.3
SA206-17	1-3/16											0.32
SA206-18	1-1/8											0.32
SA206-19	1-3/16											0.39
SA206-20	1-1/4											0.29
SA207	35	72 2.8346	35.7 1.4055	25.4 1.0000	17 0.6693	9.5 0.3740	5.7 0.2244	17.5 0.6890	51.1 2.0118	25700	15200	0.42
SA207-20	1-1/4											0.46
SA207-21	1-5/16											0.43
SA207-22	1-3/8											0.42
SA207-23	1-7/16											0.41
SA208	40	80 3.1496	43.7 1.7205	30.2 1.1890	18 0.7087	11 0.4331	6.2 0.2441	18.3 0.7205	58 2.2835	29600	18200	0.6
SA208-24	1-1/2											0.58
SA208-25	1-9/16											0.6
SA209	45	85 3.3465	43.7 1.7205	30.2 1.1891	19 0.7480	11 0.4331	6.5 0.2559	18.3 0.7205	63.5 2.5000	31850	20800	0.66
SA209-26	1-5/8											0.75
SA209-27	1-11/16											0.71
SA209-28	1-3/4											0.67
SA210	50	90 3.5433	43.7 1.7205	30.2 1.1890	20 0.7874	11 0.4331	6.5 0.2559	18.3 0.7205	67.2 2.6457	35100	23200	0.75
SA210-29	1-13/16											0.81
SA210-30	1-7/8											0.8
SA210-31	1-15/16											0.77
SA210-32	2											0.75
SA211	55	100 3.9370	48.4 1.9055	32.5 1.2795	24 0.9449	12 0.4724	7.2 0.2835	20.7 0.8150	74.5 2.9331	43550	29200	1.04
SA211-32	2											1.17
SA211-33	2-1/16											1.12
SA211-34	2-1/8											1.07
SA211-35	2-3/16											1.02
SA212	60	110 4.3307	49.3 1.9409	33.4 1.3150	24 0.9449	12 0.4724	8 0.3150	22.3 0.878	82 3.2283	47800	32800	1.35
SA212-36	2-1/4											1.45
SA212-37	2-5/16											1.38
SA212-38	2-3/8											1.34
SA212-39	2-7/16											1.28
