UCFC Piloted Round Housings

QY816

The UCFC series bearing housings can be classified into stainless steel, cast steel, cast iron, plastic, etc. depending on the different materials.

For more models, please contact us.

Quantity:

Contact Now

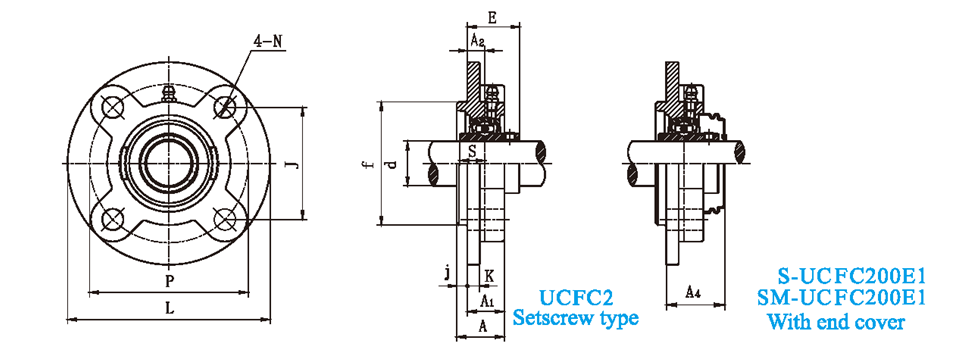

Unit No.			Dimensions(mm)												Bolt Used		Bearing
	(in)	(mm)	L	P	J	A2	N	j	K	A1	f	A	E	S	mm	in	No.
UCFC201-8	1/2		100	78	55.1	10	12	5	7	20.5	62	35.5	28.3	12.7	M10	3/8	UC201-8
UCFC202-9	9/16																UC202-9
UCFC202-10	5/8																UC202-10
UCFC203-11	11/16																UC203-11
UCFC 204-12	3/4																UC204-12
UCFC201		12															UC201
UCFC202		15															UC202
UCFC203		17															UC203
UCFC204		20															UC 204
UCFC205-13	13/16		115	90	63.6	10	12	6	7	21	70	38.5	29.7	14.3	M10	3/8	UC205-13
UCFC205-14	7/8																UC205-14
UCFC205-15	15/16																UC205-15
UCFC205-16	1																UC205-16
UCFC205		25															UC205
UCFC206-17	1-1/16		125	100	70.7	10	12	8	8	23	80	41	32.2	15.9	M10	3/8	UC206-17
UCFC206-18	1-1/8																UC206-18
UCFC206-19	1-3/16																UC206-19
UCFC206-20	1-1/4																UC206-20
UCFC206		30															UC206
UCFC207-20	1-1/4		135	110	77.8	11	14	8	9	26	90	47	36.4	17.5	M12	7/16	UC207-20
UCFC207-21	1-5/16																UC207-21
UCFC207-22	1-3/8																UC207-22
UCFC207-23	1-7/16																UC207-23
UCFC207		35															UC207
UCFC208-24	1-1/2		145	120	84.8	11	14	10	9	26	100	52	41.2	19	M12	7/16	UC208-24
UCFC208-25	1-9/16																UC208-25
UCFC208		40															UC208
UCFC209-26	1-5/8		160	132	93.3	10	16	12	14	26	105	51	40.2	19	M14	1/2	UC209-26
UCFC209-27	1-11/16																UC209-27
UCFC209-28	1-3/4																UC209-28
UCFC209		45															UC209
UCFC210-29	1-13/16		165	138	97.6	10	16	12	14	28	110	53.5	42.6	19	M14	1/2	UC210-29
UCFC 210-30	1-7/8																UC210-30
UCFC210-31	1-15/16																UC210-31
UCFC210-32	2																UC210-32
UCFC210		50															UC210
UCFC211-32	2		185	150	106	13	19	12	15	31	125	59	46.4	22.2	M16	5/8	UC211-32
UCFC211-33	2-1/16																UC211-33
UCFC211-34	2-1/8																UC211-34
UCFC211-35	2-3/16																UC211-35
UCFC211		55															UC211
UCFC212-36	2-1/4		195	160	113	17	19	12	15	36	135	68	56.7	25.4	M16	5/8	UC212-36
UCFC 212-37	2-5/16																UC212-37
UCFC212-38	2-3/8																UC212-38
UCFC212-39	2-7/16																UC212-39
UCFC212		60															UC212
UCFC213-40	2-1/2		205	170	120	16	19	14	15	36	145	69.5	55.7	25.4	M16	5/8	UC213-40
UCFC213-41	2-9/16																UC213-41
UCFC213		65															UC213
UCFC214-42	2-5/8		215	177	125	17	19	14	18	40	150		61.4	30.2	M16	5/8	UC214-42
UCFC214-43	2-11/16																UC214-43
UCFC214-44	2-3/4																UC214-44
UCFC214		70															UC214
UCFC215-45	2-13/16		220	184	130	18	19	16	18	40	160		62.5	33.3	M16	5/8	UC215-45
UCFC215-46	2-7/8																UC215-46
UCFC215-47	2-15/16																UC215-47
UCFC215-48	3																UC215-48
UCFC215		75															UC215
UCFC216-50	3-1/8		240	200	141	18	23	16	18	42	170		67.3	33.3	M20	3/4	UC216-50
UCFC216		80															UC216
UCFC217-52	3-1/4		250	208	147	18	23	18	20	45	180		69.6	34.1	M20	3/4	UC217-52
UCFC217		85															UC217
UCFC218-56	3-1/2		265	220	156	22	23	18	20	50	190		78.3	39.7	M20	3/4	UC218-56
UCFC218		90															UC218
