UCFL Two-Bolt Flange Housings

QY819

The UCFC series bearing housings can be classified into stainless steel, cast steel, cast iron, plastic, etc. depending on the different materials.

For more models, please contact us.

Quantity:

Contact Now

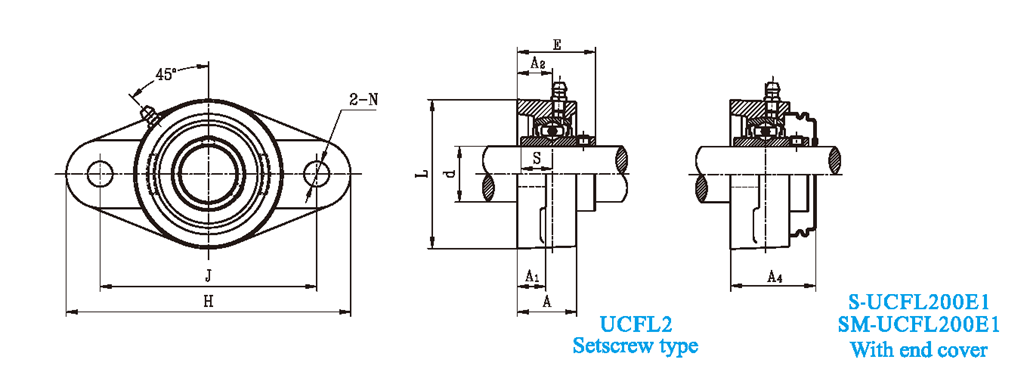

BearingUint No.	Shaft Dia d		Dimensions(mm)									Bolt Used		Bearing No.	Housing No.	Housing
	(in)	(mm)	H	J	A2	A1	A	N	L	E	S	(mm)	(in)			Weight (kg)
UCFL201-8S	1/2		99	76.5	15	13	25.5	11.5	57	31	10	M10	3/8	UCW201-8	FL203	0.25
UCFL202-9S	9/16													UCW202-9
UCFL202-10S	5/8													UCW202-10
UCFL203-11S	11/16													UCW203-11
UCFL201S		12												UCW201
UCFL202S		15												UCW202
UCFL203S		17												UCW203
UCFL201-8	1/2		113	90	15	12	25.5	12	60	33.3	12.7	M10	3/8	UC201-8	FL204	0.28
UCFL202-9	9/16													UC202-9
UCFL202-10	5/8													UC202-10
UCFL203-11	11/16													UC203-11
UCFL204-12	3/4													UC204-12
UCFL201		12												UC201
UCFL202		15												UC202
UCFL203		17												UC203
UCFL204		20												UC204
UCFL205-13	13/16		130	99	16	14	27	16	68	35.7	14.3	M14	1/2	UC205-13	FL205	0.4
UCFL205-14	7/8													UC205-14
UCFL205-15	15/16													UC205-15
UCFL205-16	1													UC205-16
UCFL205		25												UC205
UCFL206-17	1-1/16		148	117	18	14	31	16	80	40.2	15.9	M14	1/2	UC206-17	FL206	0.54
UCFL206-18	1-1/8													UC206-18
UCFL206-19	1-3/16													UC206-19
UCFL206-20	1-1/4													UC206-20
UCFL206		30												UC206
UCFL207-20	1-1/4		161	130	19	16	34	16	90	44.4	17.5	M14	1/2	UC207-20	FL207	0.65
UCFL207-21	1-5/16													UC207-21
UCFL207-22	1-3/8													UC207-22
UCFL207-23	1-7/16													UC207-23
UCFL207		35												UC207
UCFL208-24	1-1/2		175	144	21	16	36	16	100	51.2	19	M14	1/2	UC208-24	FL208	0.8
UCFL208-25	1-9/16													UC208-25
UCFL208		40												UC208
UCFL209-26	1-5/8		188	148	22	18	38	19	108	52.2	19	M16	5/8	UC209-26	FL209	1.15
UCFL209-27	1-11/16													UC209-27
UCFL209-28	1-3/4													UC209-28
UCFL209		45												UC209
UCFL210-29	1-13/16		197	157	22	18	40	19	115	54.6	19	M16	5/8	UC210-29	FL210	1.25
UCFL210-30	1-7/8													UC210-30
UCFL210-31	1-15/16													UC210-31
UCFL210-32	2													UC210-32
UCFL210		50												UC210
UCFL211-32	2		224	184	25	20	43	19	130	58.4	22.2	M16	5/8	UC211-32	FL211	1.85
UCFL211-33	2-1/16													UC211-33
UCFL211-34	2-1/8													UC211-34
UCFL211-35	2-3/16													UC211-35
UCFL211		55												UC211
UCFL212-36	2-1/4		250	202	29	20	48	23	140	68.7	25.4	M20	3/4	UC212-36	FL212	2.1
UCFL212-37	2-5/16													UC212-37
UCFL212-38	2-3/8													UC212-38
UCFL212-39	2-7/16													UC212-39
UCFL212		60												UC212
UCFL213-40	2-1/2		258	210	30	24	50	23	155	69.7	25.4	M20	3/4	UC213-40	FL213	2.8
UCFL213-41	2-9/16													UC213-41
UCFL213		65												UC213
UCFL214-42	2-5/8		265	216	31	24	54	23	160	75.4	30.2	M20	3/4	UC214-42	FL214	3.2
UCFL214-43	2-11/16													UC214-43
UCFL214-44	2-3/4													UC214-44
UCFL214		70												UC214
UCFL215-45	2-13/16		275	225	34	24	56	23	165	78.5	33.3	M20	3/4	UC215-45	FL215	2.8
UCFL215-46	2-7/8													UC215-46
UCFL215-47	2-15-16													UC215-47
UCFL215-48	3													UC215-48
UCFL215		75												UC215
UCFL216-50	3-1/8		290	233	34	24	58	25	180	83.3	33.3	M22	7/8	UC216-50	FL216	3.53
UCFL216		80												UC216
UCFL217-52	3-1/4		305	248	36	26	63	25	190	87.6	34.1	M22	7/8	UC217-52	FL217	5.5
UCFL217		85												UC217
UCFL218-56	3-1/2		320	265	40	26	68	25	205	96.3	39.7	M22	7/8	UC218-56	FL218	6
UCFL218		90												UC218

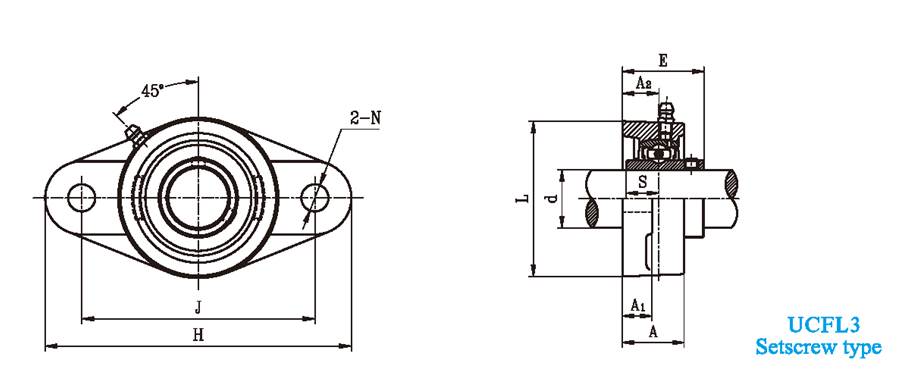

Unit No.	Shaft Dia d		Dimensions(mm)									Bolt Used		Bearing No.	Housing No.	Weight (kg)
	(in)	(mm)	H	J	A2	A1	A	N	L	E	S	(mm)	(in)
UCFL305-14	7/8		150	113	16	13	29	19	80	39	15	M16	5/8	UC305-14	FL305	1.2
UCFL305-15	15/16													UC305-15
UCFL305-16	1													UC305-16
UCFL305		25												UC305
UCFL306-18	1-1/8		180	134	18	15	32	23	90	44	17	M20	3/4	UC306-18	FL306	1.7
UCFL306-19	1-3/16													UC306-19
UCFL306		30												UC306
UCFL307-20	1-1/4		185	141	20	16	36	23	100	49	19	M20	3/4	UC307-20	FL307	2.2
UCFL307-21	1-5/16													UC307-21
UCFL307-22	1-3/8													UC307-22
UCFL307-23	1-7/16													UC307-23
UCFL307		35												UC307
UCFL308-24	1-1/2		200	158	23	17	40	23	112	56	19	M20	3/4	UC308-24	FL308	2.9
UCFL308-25	1-9/16													UC308-25
UCFL308		40												UC308
UCFL309-26	1-5/8		230	177	25	18	44	25	125	60	22	M22	7/8	UC309-26	FL309	3.6
UCFL309-27	1-11/16													UC309-27
UCFL309-28	1-3/4													UC309-28
UCFL309		45												UC309
UCFL310-30	1-7/8		240	187	28	19	48	25	140	67	22	M22	7/8	UC310-30	FL310	4.7
UCFL310-31	1-15/16													UC310-31
UCFL310		50												UC310
UCFL311-32	2		250	198	30	20	52	25	150	71	25	M22	7/8	UC311-32	FL311	5.7
UCFL311-34	2-1/8													UC311-34
UCFL311-35	2-3/16													UC311-35
UCFL311		55												UC311
UCFL312-36	2-1/4		270	212	33	22	56	31	160	78	26	M27	1	UC312-36	FL312	6.8
UCFL312-38	2-3/8													UC312-38
UCFL312-39	2-7/16													UC312-39
UCFL312		60												UC312
UCFL313-40	2-1/2		295	240	33	25	58	31	175	78	30	M27	1	UC313-40	FL313	7.8
UCFL313		65												UC313
UCFL314-44	2-3/4		315	250	36	28	61	35	185	81	33	M30	1-1/8	UC314-44	FL314	10
UCFL314		70												UC314
UCFL315-48	3		320	260	39	30	66	35	195	89	32	M30	1-1/8	UC315-48	FL315	12
UCFL315		75												UC315
UCFL316-50	3-1/8		355	285	38	32	68	38	210	90	34	M33	1-1/4	UC316-50	FL316	13.7
UCFL316		80												UC316
UCFL317-52	3-1/4		370	300	44	32	74	38	220	100	40	M33	1-1/4	UC317-52	FL317	15.4
UCFL317		85												UC317
UCFL318-56	3-1/2		385	315	44	36	76	38	235	100	40	M33	1-1/4	UC318-56	FL318	19
UCFL318		90												UC318
UCFL319-60	3-3/4		405	330	59	40	94	41	250	121	41	M36		UC319-60	FL319	20.6
UCFL319		95												UC319
UCFL320-64	4		440	360	59	40	94	44	270	125	42	M39		UC320-64	FL320	25.7
UCFL320		100												UC320
UCFL321		105	440	360	59	40	94	44	270	127	44	M39		UC321	FL321	27
UCFL322		110	470	390	60	42	96	44	300	131	46	M39		UC322	FL322	38
UCFL324		120	520	430	65	48	110	47	330	140	51	M42		UC324	FL324	43.67
UCFL326		130	550	460	65	50	115	47	360	146	54	M42		UC326	FL326	61.3
UCFL328		140	600	500	75	60	125	51	400	161	59	M45		UC328	FL328	90
