Carcasas de UCF Square

QY814

Las carcasas de cojinetes de la serie UCF se pueden clasificar en acero inoxidable, acero fundido, hierro fundido, plástico, etc. dependiendo de los diferentes materiales. Para más modelos, contáctenos.

Cantidad:

enviar contacto

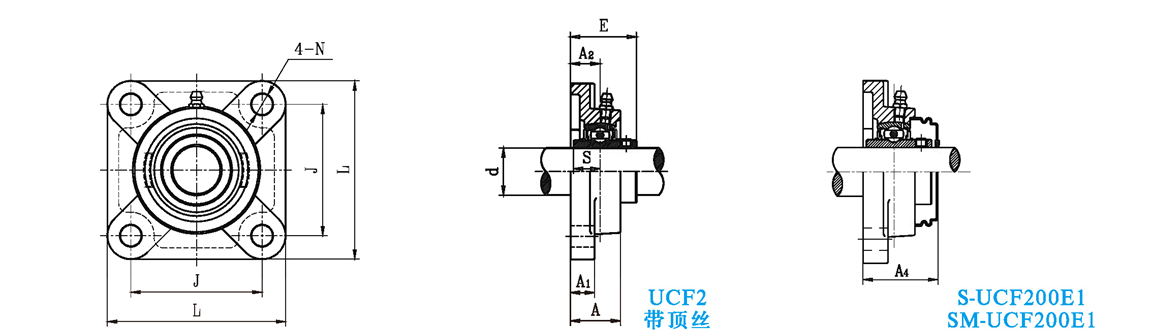

Unidad No.

Eje diámetro d

Dimensiones (mm)

Perno utilizado

Roining No.

Vivienda No.

Alojamiento

(en)

(mm)

L

J

A2

A1

A

norte

mi

S

(mm)

(en)

Peso (kg)

UCF201-8S

1/2

76

54

15

11

24.5

11.5

30.9

11.5

M10

3/8

UC201-8S

F203

0.4

UCF202-9S

9/16

UC202-9S

UCF202-10S

5/8

UC202-10S

UCF203-11S

16/11

UC203-11S

UCF201S

12

UC201S

UCF202S

15

UC202S

UCF203S

17

UC203S

UCF201-8

1/2

86

64

15

12

25.5

12

33.3

12.7

M10

3/8

UC201-8

F204

0.6

UCF202-9

9/16

UC202-9

UCF202-10

5/8

UC202-10

UCF203-11

16/11

UC203-11

UCF204-12

3/4

UC204-12

UCF201

12

UC201

UCF202

15

UC202

UCF203

17

UC203

UCF204

20

UC204

UCF205-13

13/16

95

70

16

14

27

12

35.8

14.3

M10

3/8

UC205-13

F205

0.78

UCF205-14

7/8

UC205-14

UCF205-15

15/16

UC205-15

UCF205-16

1

UC205-16

UCF205

25

UC205

UCF206-17

1-1/16

108

83

18

14

31

12

40.2

15.9

M10

3/8

UC206-17

F206

1.1

UCF206-18

1-1/8

UC206-18

UCF206-19

1-3/16

UC206-19

UCF206-20

1-1/4

UC206-20

UCF206

30

UC206

UCF207-20

1-1/4

117

92

19

16

34

14

44.4

17.5

M12

7/16

UC207-20

F207

1.6

UCF207-21

1-5/16

UC207-21

UCF207-22

1-3/16

UC207-22

UCF207-23

1-7/16

UC207-23

UCF207

35

UC207

UCF208-24

1-1/2

130

102

21

16

36

16

51.2

19

M14

1/2

UC208-24

F208

1.9

UCF208-25

1-9/16

UC208-25

UCF208

40

UC208

UCF209-26

1-5/8

137

105

22

18

38

16

52.2

19

M14

1/2

UC209-26

F209

2.4

UCF209-27

1-11/16

UC209-27

UCF209-28

1-3/4

UC209-28

UCF209

45

UC209

UCF210-29

1-13/16

143

111

22

18

40

16

54.6

19

M14

1/2

UC210-29

F210

2.6

UCF210-30

1-7/8

UC210-30

UCF210-31

1-15/16

UC210-31

UCF210-32

2

UC210-32

UCF210

50

UC210

UCF211-32

2

162

130

25

20

43

19

58.4

22.2

M16

5/8

UC211-32

F211

3.5

UCF211-33

2-1/16

UC211-33

UCF211-34

2-1/8

UC211-34

UCF211-35

2-3/16

UC211-35

UCF211

55

UC211

UCF212-36

2-1/4

175

143

29

20

48

19

68.7

25.4

M16

5/8

UC212-36

F212

4.2

UCF212-37

2-5/16

UC212-37

UCF212-38

2-3/8

UC212-38

UCF212-39

2-7/16

UC212-39

UCF212

60

UC212

UCF213-40

2-1/2

187

149

30

20

50

19

69.7

25.4

M16

5/8

UC213-40

F213

5.3

UCF213-41

2-9/16

UC213-41

UCF213

65

UC213

UCF214-42

2-5/8

193

152

31

24

54

19

75.4

30.2

M16

5/8

UC214-42

F214

5.5

UCF214-43

2-11/16

UC214-43

UCF214-44

2-3/4

UC214-44

UCF214

70

UC214

UCF215-45

2-13/16

200

159

34

24

56

19

78.5

33.3

M16

5/8

UC215-45

F215

6.2

UCF215-46

2-7/8

UC215-46

UCF215-47

2-15/16

UC215-47

UCF215-48

3

UC215-48

UCF215

75

UC215

UCF216-50

3-1/8

208

165

34

24

58

23

83.3

33.3

M20

3/4

UC216-50

F216

7.7

UCF216

80

UC216

UCF217-52

3-1/4

220

175

36

26

63

23

87.6

34.1

M20

3/4

UC217-52

F217

9

UCF217

85

UC217

UCF218-56

3-1/2

235

187

40

26

68

23

96.3

39.7

M20

3/4

UC218-56

F218

11.3

UCF218

90

UC218

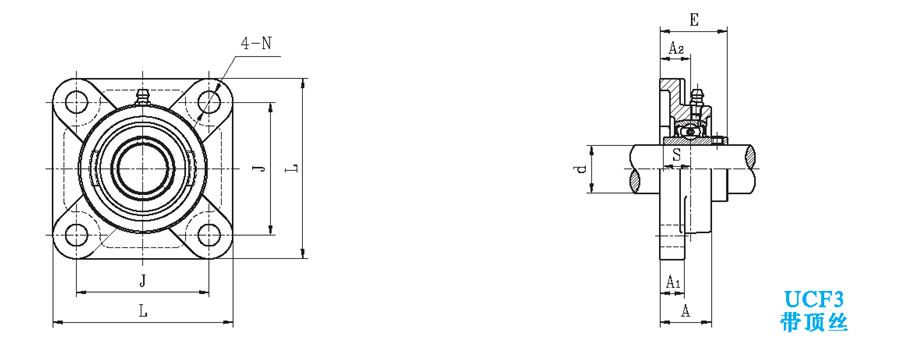

Uint No.	Eje diámetro d		Dimensiones (mm)								Perno utilizado		Roining No.	Vivienda No.	Alojamiento
	(en)	(mm)	L	J	A2	A1	A	norte	mi	S	(mm)	(en)			Peso (kg)
UCF305-14	7/8		108	80	16	13	29	16	39	15	M14	1/2	UC305-14	F305	0.9
UCF305-15	15/16												UC305-15
UCF305-16	1												UC305-16
UCF305		25											UC305
UCF306-18	1-1/8		125	95	18	15	32	16	44	17	M14	1/2	UC306-18	F306	1.28
UCF306-19	1-3/16												UC306-19
UCF306		30											UC306
UCF307-20	1-1/4		135	100	20	16	36	19	49	19	M16	5/8	UC307-20	F307	1.57
UCF307-21	1-5/16												UC307-21
UCF307-22	1-3/8												UC307-22
UCF307-23	1-7/16												UC307-23
UCF307		35											UC307
UCF308-24	1-1/2		150	112	23	17	40	19	56	19	M16	5/8	UC308-24	F308	2
UCF308-25	1-9/16												UC308-25
UCF308		40											UC308
UCF309-26	1-5/8		160	125	25	18	44	19	60	22	M16	5/8	UC309-26	F309	2.6
UCF309-27	1-11/16												UC309-27
UCF309-28	1-3/4												UC309-28
UCF309		45											UC309
UCF310-30	1-7/8		175	132	28	19	48	23	67	22	M20	3/4	UC310-30	F310	2.68
UCF310-31	1-15/16												UC310-31
UCF310		50											UC310
UCF311-32	2		185	140	30	20	52	23	71	25	M20	3/4	UC311-32	F311	3.3
UCF311-34	2-1/8												UC311-34
UCF311-35	2-3/16												UC311-35
UCF311		55											UC311
UCF312-36	2-1/4		195	150	33	22	56	23	78	26	M20	3/4	UC312-36	F312	4.1
UCF312-38	2-3/8												UC312-38
UCF312-39	2-7/16												UC312-39
UCF312		60											UC312
UCF313-40	2-1/2		208	166	33	22	58	23	78	30	M20	3/4	UC313-40	F313	4.9
UCF313		65											UC313
UCF314-44	2-3/4		226	178	36	25	61	25	81	33	M22	7/8	UC314-44	F314	5.6
UCF314		70											UC314
UCF315-48	3		236	184	39	25	66	25	89	32	M22	7/8	UC315-48	F315	7
UCF315		75											UC315
UCF316-50	3-1/8		250	196	38	27	68	31	90	34	M27	1	UC316-50	F316	9
UCF316		80											UC316
UCF317-52	3-1/4		260	204	44	27	74	31	100	40	M27	1	UC317-52	F317	10.5
UCF317		85											UC317
UCF318-56	3-1/2		280	216	44	30	76	35	100	40	M30	1-1/8	UC318-56	F318	12.8
UCF318		90											UC318
UCF319-60	3-3/4		290	228	59	30	94	35	121	41	M30	1-1/8	UC319-60	F319	13.8
UCF319		95											UC319
UCF320-64	4		310	242	59	32	94	38	125	42	M33	1-1/4	UC320-64	F320	15.2
UCF320		100											UC320
UCF321		105	310	242	59	32	94	38	127	44	M33	1-1/4	UC321	F321	15
UCF322		110	340	266	60	35	96	41	131	46	M36	1-3/8	UC322	F322	21.8
UCF324		120	370	290	65	40	110	41	140	51	M36	1-3/8	UC324	F324	25.2
UCF326		130	410	320	65	45	115	41	146	54	M36	1-3/8	UC326	F326	37
UCF328		140	450	350	75	55	125	41	161	59	M36	1-3/8	UC328	F328	57.8
