F-full loaded cylindrical roller bearing without outer ring

QY951

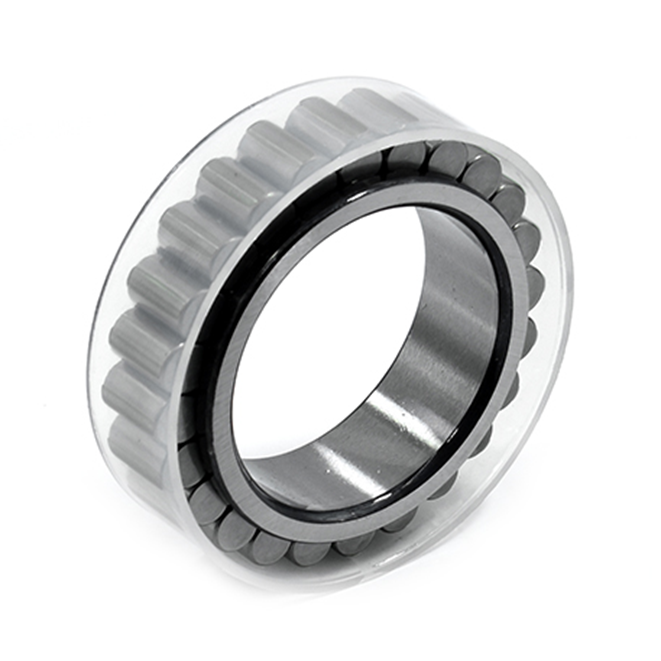

The F series without outer ring bearings are full-enclosed cylindrical roller bearings with no outer ring. They are reinforced during transportation with transparent plastic sleeves or nylon sleeves. The F series without outer ring bearings come in single row and double row versions.
The F series without outer ring bearings have wide applications and are commonly used in engineering machinery such as in gearboxes of reducers. Custom sizes can be made upon request based on samples.

Quantity:

Contact Now

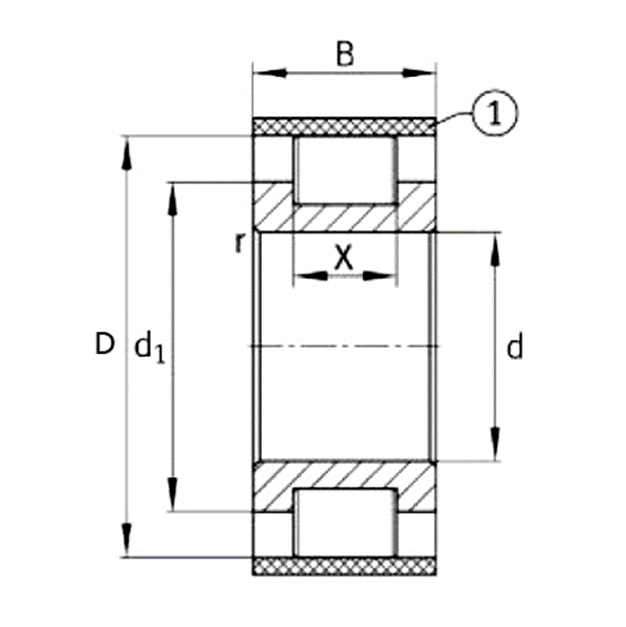

Bearing Number	ID（mm）	OD（mm）	B（mm）
F-217922	18	30.52	13
F-217843	20	33.83	18
F-229069	20	40.7	19
F-210408	22	38.75	22.5
F-229028	24	40.25	26
F-229071	25	53.55	28
F-229070	25	46.52	22
F-205248	25	42.93	40
F-205118	25	40.167	30
F-219593	25	42.51	12
F-210390	28	43.35	26.5
F-229072.2	30	60.46	28
F-229073	30	68.15	31.5
F-217615	30	49.6	25
F-219590	30	50.74	14
RNN306X3V	30	55.3	39
F-227450	32	46.6	28
F-208098	35	52.09	26.5
F-553229	35	52.09	30.5
F-217973	35	59.19	27
RNN3007X3V	35	61.3	40
567079B	36	54	22
F-237005	38	52.95	29.5
F-229575.1	38	54.686	29.5
F-201272	38	57.91	34
NUP408023	40	80	23
F-56718	40	80	23
F-49285	40	61.74	32
F-238900	40	75.63	78
F-229075	40	81.4	37.5
F-208099	40	57.81	34
907/50200	40	61.74	32
F-204781	40	61.74	35.5
BC1B320784A	40	80	23
NUP428023	42	80	23
F-208102	42	64.8	50
F-224580	42	80	23
F-238901	45	83.88	85
F-229076	45	93.3	45
F-219012	45	65.02	34
F-218867	45	66.85	40
F-204782	45	66.85	37.5
F-230055	45	61.55	32
RNN3009X3V	45	66.85	36
NUP5511035	50	110	35
F-229077.2	50	109.27	50
F-213616	50	69.67	32
F-212543	50	75.25	40
F-208266	50	72	31
F-204783	50	72.33	39
F-120720	50	72.33	40
F-208100	50	67.28	32
F-218974	50	69.58	40
NUP5210635	52	106	35
F-207813	52	106	35
F-239535	54	85.1	56
F-213617	55	77.07	41
F-210389	55	76.94	40
F-559465	57	92.6	48
F-560280	57	92.6	58
F-208101	60	83.83	46
F-553337	65	93.09	55
F-217411	65	93.09	55
F-209297	65	89.8	48
F-212191	70	95.29	54
F-238905	95	155.87	150
F-229078	65	120.97	60
F-212139	75	107.9	30
F-219634	325	383.42	43
