Single-row Cylindrical Roller Bearings

QY948

Single-row cylindrical roller bearings typically carry only radial forces and have a separable structure with inner and outer rings. Cylindrical roller bearings with no ribs on either the inner or outer ring can move relatively in the axial direction, making them suitable for use as free-end bearings. Cylindrical roller bearings with double ribs on one side of the inner and outer rings and single ribs on the other side can carry a certain degree of axial load in one direction.

Quantity:

Contact Now

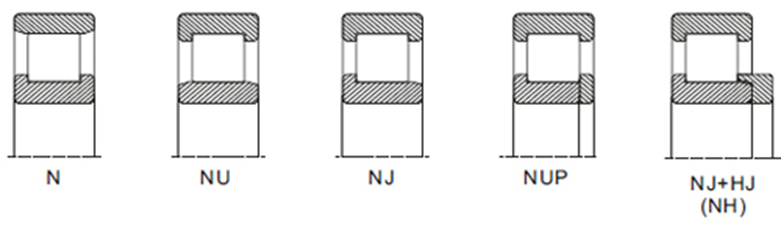

N type bearings features two integral flanges on the inner ring and outer ring without flanges.

NU type bearings features two integral flanges on the outer ring and inner ring without flanges, N and NU type bearings belong to the Non-locating bearings, they are not able to accommodate any axial loads.

NJ type bearings features two integral flanges on the outer ring and one integral flange on the inner ring, this allows them to accommodate axial loads in one direction only.

NUP type bearings have two integral flanges on the outer ring, one integral flange on the inner ting and a loose rib, so it is locating bearing and can accept axial loads in either direction.

NJ type bearings used in conjunction with thrust collars can build a locating bearing, which can accept axial loads in either direction.

Bearing Number						Principal Dimensions (mm)							Basic Load Ratings (kN)		Limiting Speeds (r/min)		Weight (kg)
NU	NJ	NUP	N	NF	NP	d	D	B	rmin	r1min	Fw	d2	Cr	Cor	Grease	Oil	Weight (kg)
NU204	NJ	NUP	N	NF	NP	20	47	14	1	1	27	—	15.4	12.7	15000	18000	0.112
NU2204	NJ	NUP	—	—	—	20	47	18	1	0.6	26.5	29.7	30.8	30	12000	16000	0.149
NU304	NJ	NUP	N	NF	NP	20	52	15	1.1	0.6	27.5	31.2	29	25.5	11000	15000	0.155
NU2304	NJ	NUP	—	—	—	20	52	21	1.1	0.6	27.5	29.7	39.2	37.5	10000	14000	0.216
NU1005	—	—	N	—	—	25	47	12	0.6	0.3	30.5	—	11	10.2	11000	15000	0.1
NU205	NJ	NUP	N	NF	NP	25	52	15	1	0.6	31.5	34.7	27.5	26.8	11000	14000	0.14
NU2205	NJ	NUP	—	—	—	25	52	18	1	0.6	31.5	34.7	32.8	33.8	11000	14000	0.168
NU305	NJ	NUP	N	NF	NP	25	62	17	1.1	1.1	34	38.1	38.5	35.8	9000	12000	0.251
NU2305	NJ	NUP	—	—	—	25	62	24	1.1	1.1	34	38.1	53.2	54.5	9000	12000	0.355
NU1006	—	—	N	—	—	30	55	13	1	0.6	36.5	—	13	12.8	9500	12000	0.12
NU206	NJ	NUP	N	NF	NP	30	62	16	1	0.6	37.5	41.3	36	35.5	8500	11000	0.214
NU2206	NJ	NUP	—	—	—	30	62	20	1	0.6	37.5	41.3	45.5	48	8500	11000	0.268
NU306	NJ	NUP	N	NF	NP	30	72	19	1.1	1.1	40.5	45	49.2	48.2	8000	10000	0.377
NU2306	NJ	NUP	—	—	—	30	72	27	1.1	1.1	40.5	45	70	75.5	8000	10000	0.538
NU406	NJ	NUP	N	NF	NP	30	90	23	1.5	1.5	45	50.5	57.2	53	7000	9000	0.73
NU1007	—	—	N	—	—	35	62	14	1	0.6	42	—	19.5	18.8	8500	11000	0.16
NU207	NJ	NUP	N	NF	NP	35	72	17	1.1	0.6	44	48.3	46.5	48	7500	9500	0.311
NU2207	NJ	NUP	—	—	—	35	72	23	1.1	0.6	44	48.3	57.5	63	7500	9500	0.414
NU307	NJ	NUP	N	NF	NP	35	80	21	1.5	1.1	46.2	51.1	62	63.2	7000	9000	0.501
NU2307	NJ	NUP	—	—	—	35	80	31	1.5	1.1	46.2	51.1	87.5	98.2	7000	9000	0.738
NU407	NJ	NUP	—	NF	NP	35	100	25	1.5	1.5	53	59	70.8	68.2	6000	7500	0.94
NU1008	—	—	N	—	—	40	68	15	1	0.6	47	—	21.2	22	7500	9500	0.22
NU208	NJ	NUP	N	NF	NP	40	80	18	1.1	1.1	49.5	54.2	51.5	53	7000	9000	0.394
NU2208	NJ	NUP	—	—	—	40	80	23	1.1	1.1	49.5	54.2	67.5	75.2	7000	9000	0.507
NU308	NJ	NUP	N	NF	NP	40	90	23	1.5	1.5	52	57.7	76.8	77.8	6300	8000	0.68
NU2308	NJ	NUP	—	—	—	40	90	23	1.5	1.5	52	57.7	105	118	6300	8000	0.974
NU408	NJ	NUP	N	NF	NP	40	110	27	2	2	58	64.8	90.5	89.8	5600	7000	1.25
NU1009	—	—	N	—	—	45	75	16	1	0.6	52.5	—	23.2	23.8	6500	8500	0.26
NU209	NJ	NUP	N	NF	NP	45	85	19	1.1	1.1	54.5	59.2	58.5	63.8	6300	8000	0.45
NU2209	NJ	NUP	—	—	—	45	85	23	1.1	1.1	54.5	59.2	71	82	6300	8000	0.55
NU309	NJ	NUP	N	NF	NP	45	100	25	1.5	1.5	58.5	64.7	93	98	5600	7000	0.93
NU2309	NJ	NUP	—	—	—	45	100	36	1.5	1.5	58.5	64.7	130	152	5600	7000	1.34
NU409	NJ	NUP	N	NF	NP	45	120	29	2	2	64.5	71.8	102	100	5000	6300	1.8
NU1010	—	—	N	—	—	50	80	16	1	0.6	57.5	—	25	27.5	6300	8000	0.31
NU210	NJ	NUP	N	NF	NP	50	90	20	1.1	1.1	59.5	64.2	61.2	69.2	6000	7500	0.505
NU2210	NJ	NUP	—	—	—	50	90	23	1.1	1.1	59.5	64.2	74.2	88.8	6000	7500	0.59
NU310	NJ	NUP	N	NF	NP	50	110	27	2	2	65	71.2	105	112	5300	6700	1.2
NU2310	NJ	NUP	—	—	—	50	110	40	2	2	65	71.2	155	185	5300	6700	1.79
NU410	NJ	NUP	N	NF	NP	50	130	31	2.1	2.1	70.8	78.8	120	120	4800	6000	2.3
NU1011	—	—	N	—	—	55	90	18	1.1	1	64.5	—	35.8	40	5600	7000	0.45
NU211	NJ	NUP	N	NF	NP	55	100	21	1.5	1.1	66	70.9	80.2	95.5	5300	6700	0.68
NU2211	NJ	NUP	—	—	—	55	100	25	1.5	1.1	66	70.9	94.8	118	5300	6700	0.81
NU311	NJ	NUP	N	NF	NP	55	120	29	2	2	70.5	77.4	128	138	4800	6000	1.53
NU2311	NJ	NUP	—	—	—	55	120	43	2	2	70.5	77.4	190	228	4800	6000	2.28
NU411	NJ	NUP	N	NF	NP	55	140	33	2.1	2.1	77.2	85.2	128	132	4300	5300	2.8
NU1012	—	—	N	—	—	60	95	18	1.1	1	69.5	—	38.5	45	5300	6700	0.48
NU212	NJ	NUP	N	NF	NP	60	110	22	1.5	1.5	72	77.7	89.8	102	5000	6300	0.86
NU2212	NJ	NUP	—	—	—	60	110	28	1.5	1.5	72	77.7	122	152	5000	6300	1.12
NU312	NJ	NUP	N	NF	NP	60	130	31	2.1	2.1	77	84.3	142	155	4500	5600	1.87
NU2312	NJ	NUP	—	—	—	60	130	46	2.1	2.1	77	84.3	212	260	4500	5600	2.81
NU412	NJ	NUP	N	NF	NP	60	150	35	2.1	2.1	83	91.8	155	162	4000	5000	3.4
NU1013	—	—	N	—	—	65	100	18	1.1	1	74.5	—	39	46.5	4800	6000	0.51
NU213	NJ	NUP	N	NF	NP	65	120	23	1.5	1.5	78.5	84.6	102	118	4500	5600	1.08
NU2213	NJ	NUP	—	—	—	65	120	31	1.5	1.5	78.5	84.6	142	180	4500	5600	1.48
NU313	NJ	NUP	N	NF	NP	65	140	33	2.1	2.1	82.5	90.6	170	188	4000	5000	2.31
NU2313	NJ	NUP	—	—	—	65	140	48	2.1	2.1	82.5	90.6	235	285	4000	5000	3.34
NU413	NJ	NUP	N	NF	NP	65	160	37	2.1	2.1	89.5	98.5	170	178	3800	4800	4
NU1014	—	—	N	—	—	70	110	20	1.1	1	80	—	47.5	57	4800	6000	0.71
NU214	NJ	NUP	N	NF	NP	70	125	24	1.5	1.5	83.5	89.6	112	135	4300	5300	1.2
NU2214	NJ	NUP	—	—	—	70	125	31	1.5	1.5	83.5	89.6	148	192	4300	5300	1.56
NU314	NJ	NUP	N	NF	NP	70	150	35	2.1	2.1	89	97.5	195	220	3800	4800	2.86
NU2314	NJ	NUP	—	—	—	70	150	51	2.1	2.1	89	97.5	260	320	3800	4800	4.1
NU414	NJ	NUP	N	NF	NP	70	180	42	3	3	100	110	215	232	3400	4300	5.9
NU1015	—	—	N	—	—	75	115	20	1.1	1	85	—	51.5	61.2	4500	5600	0.74
NU215	NJ	NUP	N	NF	NP	75	130	25	1.5	1.5	88.5	94.6	125	155	4000	5000	1.32
NU2215	NJ	NUP	—	—	—	75	130	31	1.5	1.5	88.5	94.6	155	205	4000	5000	1.64
NU315	NJ	NUP	N	NF	NP	75	160	37	2.1	2.1	95	104.2	228	260	3600	4500	3.43
NU2315	NJ	NUP	—	—	—	75	160	55	2.1	2.1	95.5	104	245	308	3600	4500	5.4
NU415	NJ	NUP	N	NF	NP	75	190	45	3	3	104.5	116	250	272	3200	4000	7.1
NU1016	—	—	N	—	—	80	125	22	1.1	1	91.5	—	59.2	77.8	4300	5300	1
NU216	NJ	NUP	N	NF	NP	80	140	26	2	2	95.3	101.1	132	165	3800	4800	1.58
NU2216	NJ	NUP	—	—	—	80	140	33	2	2	95.3	101.1	178	242	3800	4800	2.05
NU316	NJ	NUP	N	NF	NP	80	170	39	2.1	2.1	101	110.1	245	282	3400	4300	4.05
NU2316	NJ	NUP	—	—	—	80	170	58	2.1	2.1	103	111	258	328	3400	4300	6.4
NU416	NJ	NUP	N	NF	NP	80	200	48	3	3	110	122	285	315	3000	3800	8.3
NU1017	—	—	N	—	—	85	130	22	1.1	1	96.5	—	64.5	81.6	4000	5000	1.05
NU217	NJ	NUP	N	NF	NP	85	150	28	2	2	100.5	107.1	158	192	3600	4500	2
NU2217	NJ	NUP	—	—	—	85	150	36	2	2	100.5	107.1	205	272	3600	4500	2.58
NU317	NJ	NUP	N	NF	NP	85	180	41	3	3	108	117.4	280	332	3200	4000	4.82
NU2317	NJ	NUP	—	—	—	85	180	60	3	3	108	117	295	380	3200	4000	7.4
NU417	NJ	NUP	N	NF	NP	85	210	52	4	4	113	126	312	345	2800	3600	9.8
NU1018	—	—	N	—	—	90	140	24	1.5	1.1	103	—	74	94.8	3800	4800	1.36
NU218	NJ	NUP	N	NF	NP	90	160	30	2	2	107	113.9	172	215	3400	4300	2.44
NU2218	NJ	NUP	—	—	—	90	160	40	2	2	107	113.9	230	312	3400	4300	3.26
NU318	NJ	NUP	N	NF	NP	90	190	43	3	3	113.5	123.7	298	348	3000	3800	5.59
NU2318	NJ	NUP	—	—	—	90	190	64	3	3	115	125	310	395	3000	3800	8.4
NU418	NJ	NUP	N	NF	NP	90	225	54	4	4	123.5	137	352	392	2400	3200	11
NU1019	—	—	N	—	—	95	145	24	1.5	1.1	108	—	75.5	98.5	3600	4500	1.4
NU219	NJ	NUP	N	NF	NP	95	170	32	2.1	2.1	112.5	120.2	208	262	3200	4000	2.96
NU2219	NJ	NUP	—	—	—	95	170	43	2.1	2.1	112.5	120.2	275	368	3200	4000	3.97
NU319	NJ	NUP	N	NF	NP	95	200	45	3	3	121.5	131.7	315	380	2800	3600	6.52
NU2319	NJ	NUP	—	—	—	95	200	67	3	3	121.5	132	370	500	2800	3600	10.4
NU419	NJ	NUP	N	NF	NP	95	240	55	4	4	133	147	378	428	2200	3000	14
NU1020	—	—	N	—	—	100	150	24	1.5	1.1	113	—	78	102	3400	4300	1.5
NU220	NJ	NUP	N	NF	NP	100	180	34	2.1	2.1	119	127	235	302	3000	3800	3.58
NU2220	NJ	NUP	—	—	—	100	180	46	2.1	2.1	119	127	318	440	3000	3800	4.86
NU320	NJ	NUP	N	NF	NP	100	215	47	3	3	127.5	139.1	365	425	2600	3200	7.89
NU2320	NJ	NUP	—	—	—	100	215	73	3	3	129.5	140	415	558	2600	3200	13.5
NU420	NJ	NUP	N	NF	NP	100	250	58	4	4	139	153	418	480	2000	2800	16
NU1021	—	—	N	—	—	105	160	26	2	1.1	119.5	—	91.5	122	3200	4000	1.9
NU221	NJ	NUP	N	NF	NP	105	190	36	2.1	2.1	126.8	135	185	235	2800	3600	4
NU321	NJ	NUP	N	NF	NP	105	225	49	3	3	135	147	322	392	2200	3000	8.73
NU421	NJ	NUP	N	NF	NP	105	260	60	4	4	144.5	159	508	602	1900	2600	19.5
NU1022	—	—	N	—	—	110	170	28	2	1.1	125	131	115	155	3000	3800	2.3
NU222	NJ	NUP	N	NF	NP	110	200	38	2.1	2.1	132.5	141.3	278	360	2600	3400	5.02
NU2222	NJ	NUP	—	—	—	110	200	53	2.1	2.1	132	141	312	445	2600	3400	7.5
NU322	NJ	NUP	N	NF	NP	110	240	50	3	3	143	155	352	428	2000	2800	11
NU2322	NJ	NUP	—	—	—	110	240	80	3	3	143	155	535	740	2000	2800	17.5
NU422	NJ	NUP	N	NF	NP	110	280	65	4	4	155	171	515	602	1800	2400	22
NU1024	—	—	N	—	—	120	180	28	2	1.1	135	—	130	168	2600	3400	2.96
NU224	NJ	NUP	N	NF	NP	120	215	40	2.1	2.1	143.5	153	322	422	2200	3000	6.11
NU2224	NJ	NUP	—	—	—	120	215	58	2.1	2.1	143.5	153	345	522	2200	3000	9.5
NU324	NJ	NUP	N	NF	NP	120	260	55	3	3	154	168	440	552	1900	2600	14
NU2324	NJ	NUP	—	—	—	120	260	86	3	3	154	168	632	868	1900	2600	22.5
NU424	NJ	NUP	N	NF	NP	120	310	72	5	5	170	188	642	772	1700	2200	30
NU1026	—	—	N	—	—	130	200	33	2	1.1	148	—	152	212	2400	3200	3.7
NU226	NJ	NUP	N	NF	NP	130	230	40	3	3	156	165	258	352	2000	2800	7
NU2226	NJ	NUP	—	—	—	130	230	64	3	3	156	—	368	552	2000	2800	11.5
NU326	NJ	NUP	N	NF	NP	130	280	58	4	4	167	182	492	620	1700	2200	18
NU2326	NJ	NUP	—	—	—	130	280	93	4	4	167	182	748	1060	1700	2200	28.5
NU426	NJ	NUP	N	NF	NP	130	340	78	5	5	185	—	782	942	1500	1900	39
NU1028	—	—	N	—	—	140	210	33	2	1.1	158	—	158	220	2000	2800	4
NU228	NJ	NUP	N	NF	NP	140	250	42	3	3	169	179	302	415	1800	2400	9.1
NU2228	NJ	NUP	—	—	—	140	250	68	3	3	169	179	438	700	1800	2400	15
NU328	NJ	NUP	N	NF	NP	140	300	62	4	4	180	196	545	690	1600	2000	22
NU2328	NJ	NUP	—	—	—	140	300	102	4	4	180	192	825	1180	1600	2000	37
NU428	NJ	NUP	N	NF	NP	140	360	82	5	5	196	—	845	1020	1400	1800	48
NU1030	—	—	N	—	—	150	225	35	2.1	1.5	169.5	—	188	268	1900	2600	4.8
NU230	NJ	NUP	N	NF	NP	150	270	45	3	3	182	193	360	490	1700	2200	11
NU2230	NJ	NUP	—	—	—	150	270	73	3	3	182	193	530	772	1700	2200	17
NU330	NJ	NUP	N	NF	NP	150	320	65	4	4	193	209	595	765	1500	1900	26
NU2330	NJ	NUP	—	—	—	150	320	108	4	4	193	209	930	1340	1500	1900	45
NU430	NJ	NUP	N	NF	NP	150	380	85	5	5	209	—	912	1100	1300	1700	53
NU1032	—	—	N	—	—	160	240	38	2.1	1.5	180	—	212	302	1800	2400	6
NU232	NJ	NUP	N	NF	NP	160	290	48	3	3	193	206	405	552	1600	2000	14
NU2232	NJ	NUP	—	—	—	160	290	80	3	3	193	205	590	898	1600	2000	25
NU332	NJ	NUP	N	NF	NP	160	340	68	4	4	208	—	628	825	1400	1800	31.6
NU2332	NJ	NUP	—	—	—	160	340	114	4	4	208	—	972	1430	1400	1800	55.8
NU1034	—	—	N	—	—	170	260	42	2.1	2.1	193	—	255	365	1700	2200	8.14
NU234	NJ	NUP	N	NF	NP	170	310	52	4	4	208	220	425	650	1500	1900	17.1
NU334	NJ	NUP	N	NF	NP	170	360	72	4	4	220	—	715	952	1300	1700	36
NU2334	NJ	NUP	—	—	—	170	360	120	4	4	220	—	1110	1650	1300	1700	63
NU1036	—	—	N	—	—	180	280	46	2.1	2.1	205	215	300	438	1600	2000	10.1
NU236	NJ	NUP	N	NF	NP	180	320	52	4	4	218	230	425	650	1400	2800	18
NU336	NJ	NUP	N	NF	NP	180	380	75	4	4	232	252	835	1100	1200	1600	42
NU2336	NJ	NUP	—	—	—	180	380	126	4	4	230	252	1210	1780	1200	1600	71.2
NU1038	—	—	N	—	—	190	290	46	2.1	2.1	215	—	335	495	1500	1900	11.2
NU238	NJ	NUP	N	NF	NP	190	340	55	4	4	231	244	512	745	1300	1700	23
NU2238	NJ	NUP	—	—	—	190	340	92	4	4	228	—	975	1570	1300	1700	38.5
NU338	NJ	NUP	N	NF	NP	190	400	78	5	5	245	—	882	1190	1100	1500	50
NU1040	—	—	N	—	—	200	310	51	2.1	2.1	229	239	408	615	1400	1800	14.3
NU240	NJ	NUP	N	NF	NP	200	360	58	4	4	244	258	570	842	1200	1600	26
NU2240	NJ	NUP	—	—	—	200	360	98	4	4		—	1120	1725	1200	1600	45.4
NU340	NJ	NUP	N	NF	NP	200	420	80	5	5	260	—	972	1290	1000	1400	55.8
NU1044	—	—	N	—	—	220	340	56	3	3	250	262	448	685	1200	1600	14.4
NU244	NJ	NUP	N	NF	NP	220	400	65	4	4	270	286	702	1050	1000	1400	36
NU2244	NJ	NUP	—	—	—	220	400	108	4	4	270	—	1360	2330	1000	1400	62
NU344	NJ	NUP	N	NF	NP	220	460	88	5	5	284	307	1080	1465	900	1200	75
NU1048	—	—	N	—	—	240	360	56	3	3	270	282	470	745	1000	1400	21
NU248	NJ	NUP	N	NF	NP	240	440	72	4	4	295	313	880	1345	900	1200	48.2
NU348	NJ	NUP	N	NF	NP	240	500	95	5	5	310	335	1290	1810	800	1000	97.1
NU1052	—	—	N	—	—	260	400	65	4	4	296	309	592	932	950	1300	31
NU1056	—	—	N	—	—	280	420	65	4	4	316	329	600	965	850	1100	33
NU1060	—	—	N	—	—	300	460	74	4	4	340	356	880	1470	800	1000	44.4

Recommend Products

Send Message
